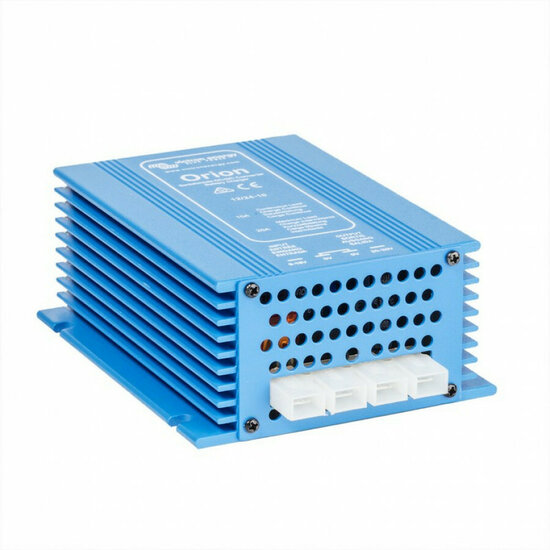

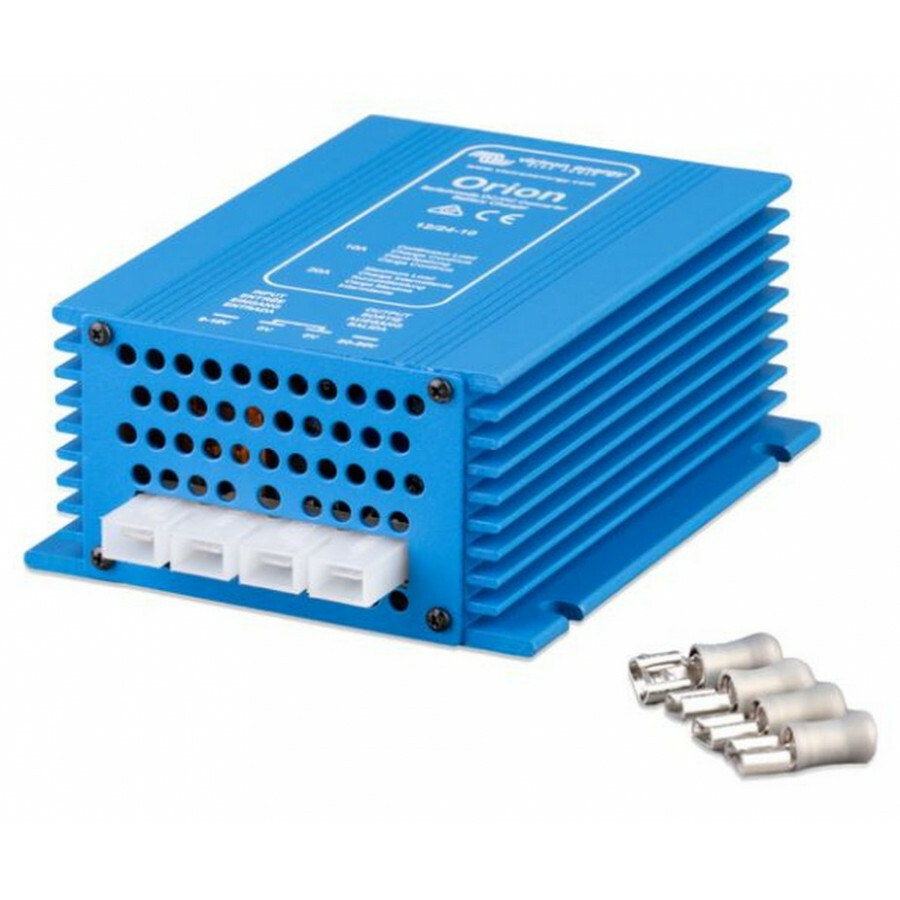

12V TO 24V CONVERTER - 10 AMPERE

The Victron Orion DC/DC converter enables the use of devices that typically can only be used in trucks due to their need for 24V, in vehicles that only have a 12V system. This device converts the 12V, for example from a passenger car, to a stable 24V, allowing you to use these specific truck products in your own vehicle without any problems. They provide protection against excessive voltage, overheating, incorrect connection of the wires, and excessive power consumption. This way, you can safely and effectively enjoy your 24V devices, even in a 12V vehicle.
Output voltage: Adjustable 20-30V (Factory set to 26.4V)
Input voltage: 9-18V
Continuous current: 10A
Maximum current: 20A
Galvanic isolation: No
No-load current: <15mA
Operating temperature range: -20 to +55°C
Dimensions HxWxD in mm: 45x90x125
Standards:
Safety EN 60950
Emission EN 61000-6-3, EN 55014-1
Immunity EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive directive ECE R10-4
