BASURI® *EDITION 2.0 * 19 MELODY AIRHORN - 24V !!

BASURI® 19 MELODY AIRHORN - EDITION 2.0 - 24V
With 19 European melodies such as the world famous Coffin Dance, Sandstorm & Bella Ciao

- 19 different melodies (full list below)
- 24V
- 6 air horns
- Super quality
- + 130dB - extremely loud !!

Includes:
- 6 pre-assembled horns
- Controller = Control / selection panel
- 6mm connection for air hose

Edit:
Preferably to have the air horn installed by a trained technician
- Red = + power
- Black = - mass
- Gray = ground (switched)
- Preferably provide the power supply with a fuse or relay.
- There must be an air supply on the vehicle - not included
- Provide a 5A fused power source
- Working pressure 8 to 10 bar

- 1 year warranty

Melodies:
Baby Shark 🦈
When mom isn't home
Horse riding
Coffin dance
The final countdown
Levels
Savage love
Still D.R.E.
If your're happy and you know it
Sandstorm
Bella ciao
Levan polkka
Mission impossible
La cucaracha
Happy birthday
Pirates of the caribbean
Sky high
TGV airhorn
Tone-high low

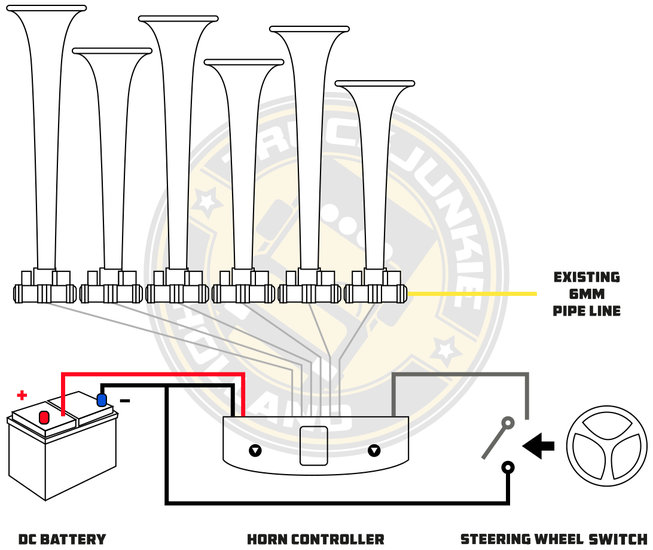

Installing the Basuri.

Controller.
a. The controller must be continuously powered by 24V on the between the black and red cable.
A common mistake is that the power to the controller itself is also behind the switch.
b. The gray cable ensures that the selected melody is played, for this the gray cable must be connected to the – pole of the battery with the switch in between that you want to use to make the horn go off.

Wiring harness
a. Leave it intact, shortening will not improve the quality.
b. Only connect the horn set with a wire harness that is intact and the cables run from the controller.
We regularly see that the black cable that runs to the 6 coils on the horn set is cut and connected directly to the chassis, this does not work as the control signal from the valves also runs through the black cable.

Air connection
a. The air horn operates at an air pressure of 8 to 12 Bar.
b. Use a 6mm rigid PVC air hose to connect to the quick coupling, if you don't have one, art. KST13UN help you further.

Warning: Not allowed on public roads - Only for use on private property
This product is intended for private use only and may not be used on public roads. Using this product on public roads may result in fines and other legal consequences. We accept no liability for any fines or other problems arising from improper use of this product. Read the instructions for use carefully and only use the product as intended on private property.
