ADDITIONAL POSITION LIGHT LED FOGLIGHT DUAL COLOR ORANGE/WHITE 2023

This 36 bright LED emitter is designed as an additional position light for Scania fog lamps from 2023 onwards. Available in dual colour with flash function, where the entire reflector of the lamp lights up without dazzling, while the fog lamp remains fully functional.

Dual Colour + Flash
- Includes an advanced controller with 6 metre cable and M8 connectors for easy connection.
- Controller has a 2 metre M8 cable for power and signals.
- 4 Modes:

• White position light
• Yellow position light
• Strobe / Warning light
• Greeting function

- Strobe function adjustable with 3 dip switches on the controller for 4 strobe patterns and split flash.
Mounting
- Lamps must be opened for mounting, which is easy on the 2023 model without any gluing issues.

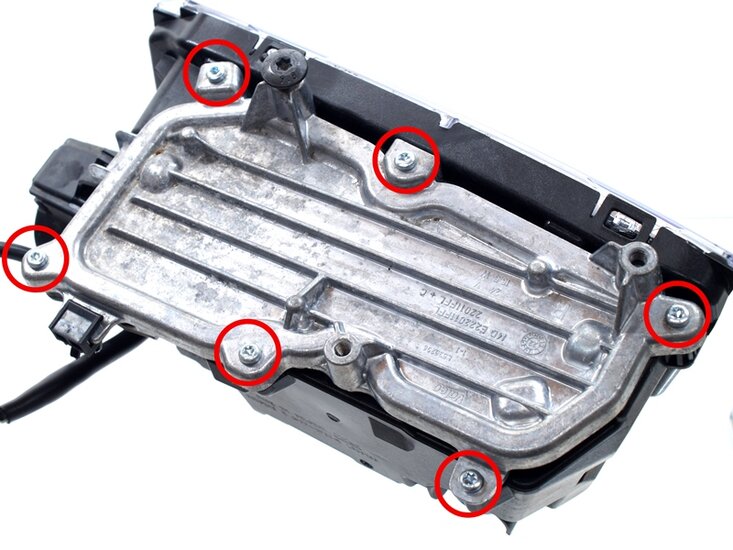

- Remove all screws from the heat sink on top of the lamp, remove the heat sink and the original emitter.
- Mount our emitter on top of the original one using the supplied spacer and 14mm screws.

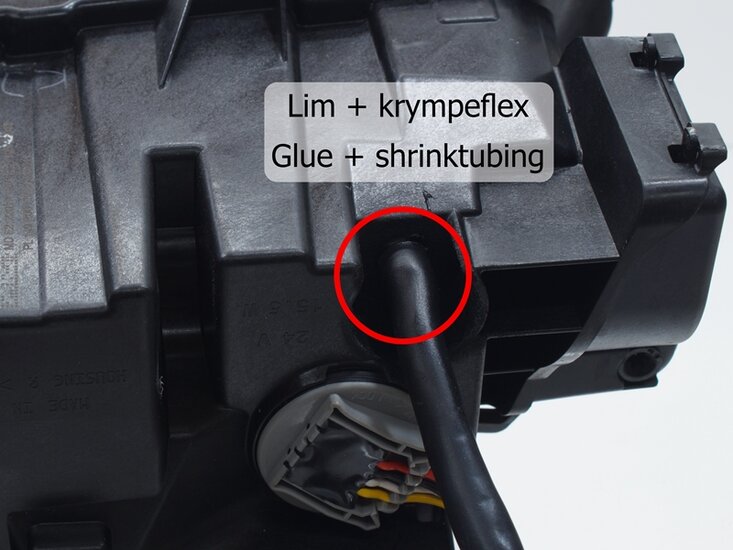

- Feed the cable through one of the blue flaps on the back, which may require enlarging the opening and re-fitting the connector.
- Use glue and heat shrink to seal the cable and flap.

Compatibility

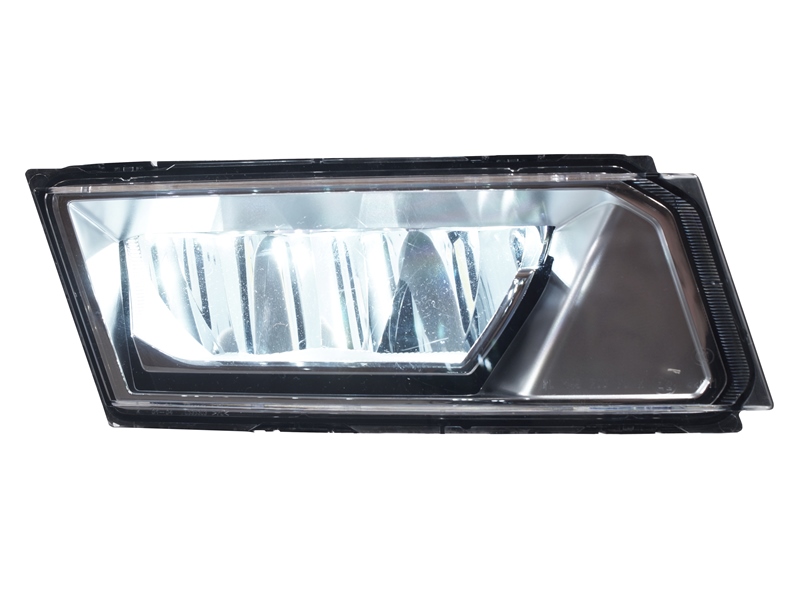

- Fits 2023 model year fog lights.
- Compare your own fog light with the photo before purchasing. If the heat sink is only mounted with screws, your model is 2023 or later.

Specifications

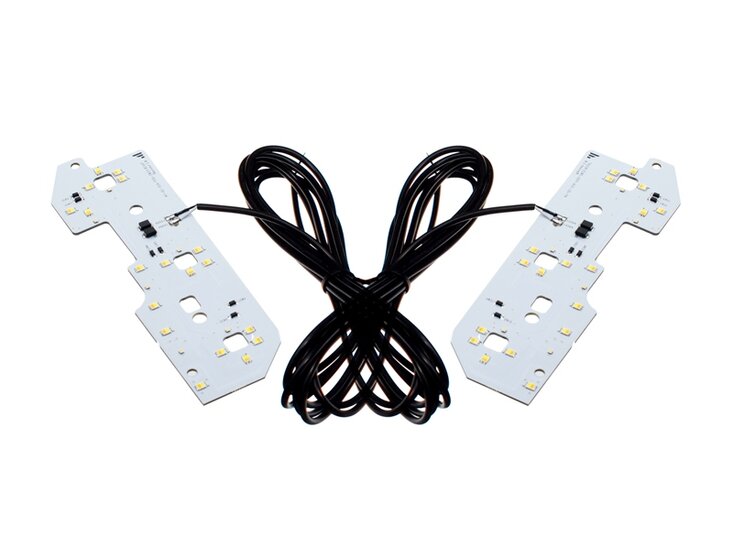

- LEDs: 36 bright LEDs
- Colors: Dual color (white and yellow)
- Cable length: Emitter: 3 meters, Controller: 6 meters with M8 connectors, Power: 2 meters with M8 connectors
- Modes: White position light, Yellow position light, Strobe / Warning light, Greeting function
- Mounting: Includes spacer and 14mm screws
