BASURI AIRHORN 12/24V - 12 MELODIES

The Basuri 12/24v 12-melody air horn is the ideal choice for anyone looking to install a powerful, versatile and unique horn on their vehicle. With an impressive volume of 130 dB, this horn can be heard up to 3-4 km away, making you stand out. The horn is suitable for various vehicles such as cars, trucks and tractors, thanks to its compatibility with both 12v and 24v systems. Made from durable aluminium, the air horn is resistant to oxidation and weathering, ensuring a long lifespan. The air horn comes with all necessary mounting materials and a controller box with which you can easily select the desired melody.

Specifications
- 12/24V
- 12 melodies
- 130 dB
- Horn dimensions
- Length: 275mm / 300mm
- Bell diameter: 105mm
- 2 horns
- Aluminum
- Black
- +/- 3 meter cable length
- 8 to 12 bar working pressure air connection
- 6mm PVC air hose

Connection instructions

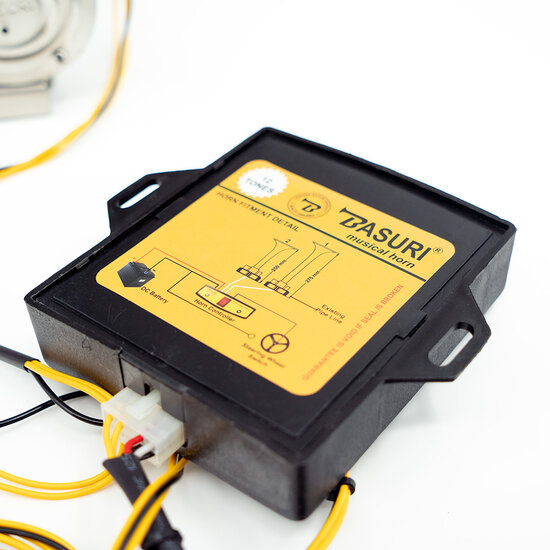

Mounting the controller
- Mount the controller box in a dry place, preferably in the cabin of the vehicle
- Ensure a constant power supply between the black and red cable
- Connect the gray cable via a switch to the negative pole (-) of the battery to be able to play melodies

Connecting the wiring harness
- Keep the wiring harness in its original condition, shortening the cables is not recommended to ensure quality and operation
- Only connect the horn set with an intact wiring harness with cables running from the controller
- Make sure that the black cable, which runs to the 6 coils on the horn set, is not cut. This can affect the operation of the valves.

Air connection
- Provide an air pressure of 8 to 12 bar.
- Use a 6mm hard PVC air hose to connect the air horn to the quick coupling
