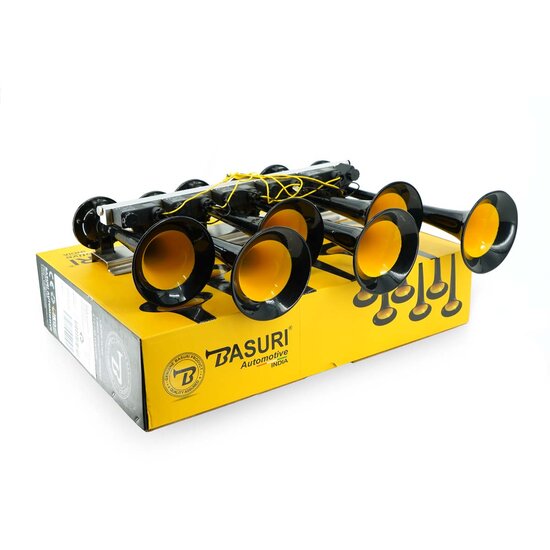

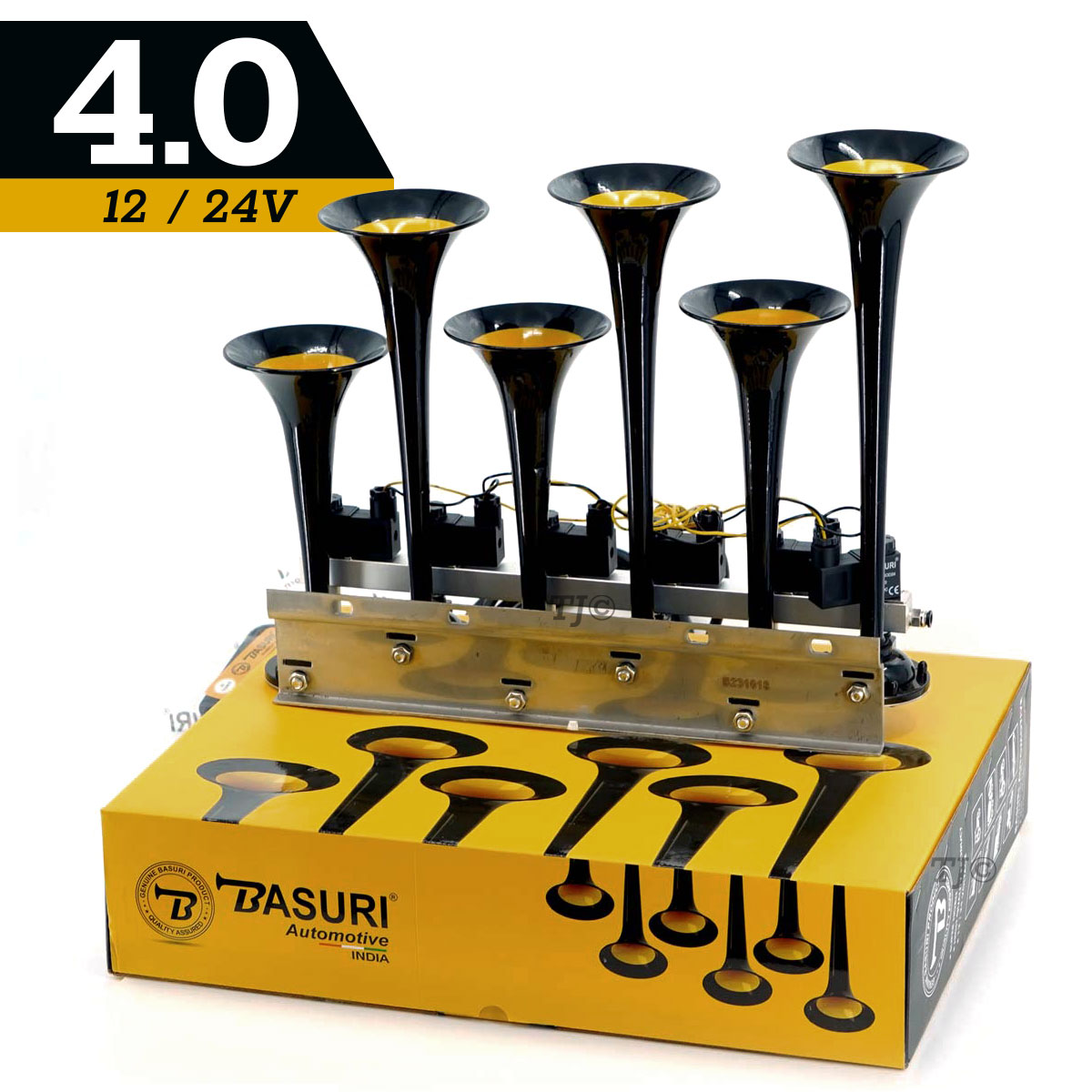

Basuri Babyshark 4.0 - 12/24V

- Super Quality
- + 130dB - extremely loud !!! (can still be heard at 3 to 4 km distance)
- 1 year warranty

Comes with:
- 6 pre-assembled horns
- Controller = control/ selection panel
- 6mm connection for air hose
- Cable length: +/- 3 meters (from horn to controller)

Mounting:
Preferably have the air horn installed by a trained technician

- The receiver must be mounted in a dry place
- Red = + power supply
- Black = - ground
- Grey = ground (switched)
- Preferably provide the power supply with a fuse or relay.
- An air supply must be present on the vehicle - not included
- Provide a 5A fused power source
- Working pressure 8 to 11 bar

Dimensions:
- Length: 51 cm
- Width: 39 cm
- Height : 10 cm

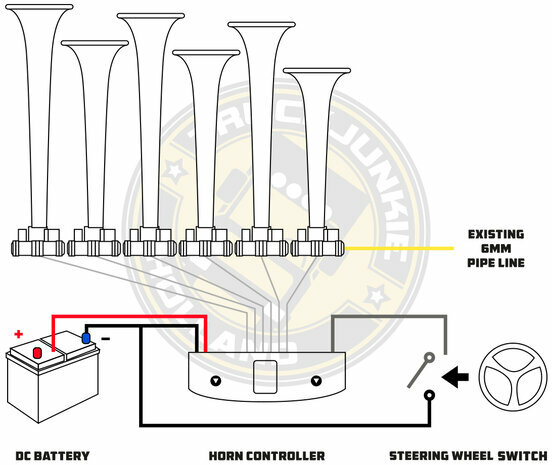

Installation information :
Controller
a.    The controller must be constantly powered by 12/24V on the between the black and red cable.
A common mistake is that the power to the controller itself is also behind the switch.
b.    The gray cable causes the selected melody to be played, for this the gray cable must be connected to the - terminal of the battery with the switch you want to use to sound the horn in between.

Cable harness
a.    Leave it intact , shortening it will not improve the quality.
b.    Connect the horn set only with a wiring harness that is in tact and whose cables run from the controller.
We frequently see that the black cable running to the 6 coils on the horn set is cut and connected directly to the chassis, this does not work as the control signal from the valves also runs through the black cable.

Air connection
a.    The air horn operates at an air pressure of 8 to 12 Bar.
b.    Make use of a 6mm rigid PVC air hose to connect to the quick coupler, if you do not have one, art. KST13UN can help you further.

00 TONE
01 PINK FROG BABY SHARK
02 UPS AND DOWN BY VENGABOYS
03 AXEL F
04 THE KETCUP SONG
05 AVENGERS
06 PLAY HARD
07 RUNNING IN 90’S
08 HIP’S DON’T LIE
09 VENTE PA’CA
10 PEPAS
11 THE REAL SLIM SHADY
12 I AM SCATMEN
13 SMOOTH CRIMINAL
14 DESART RAIN
15 BARBI GIRL
16 ANIMAL BY MARTIN GARIX
17 ICE ICE BABY
18 MAMMA MIA BEOWULF
19 THE BOYS MEME
20 WHEELS ON THE BUS
21 MOZART

AUDIO FILE

Warning: Not allowed on public roads - Only for use on private property
This product is intended for private use only and may not be used on public roads. Using this product on public roads may result in fines and other legal consequences. We accept no liability for any fines or other problems arising from improper use of this product. Read the instructions for use carefully and only use the product as intended on private property.
