LED POSITION LIGHT + STROBE GRILL DRIVING LIGHT 2023+

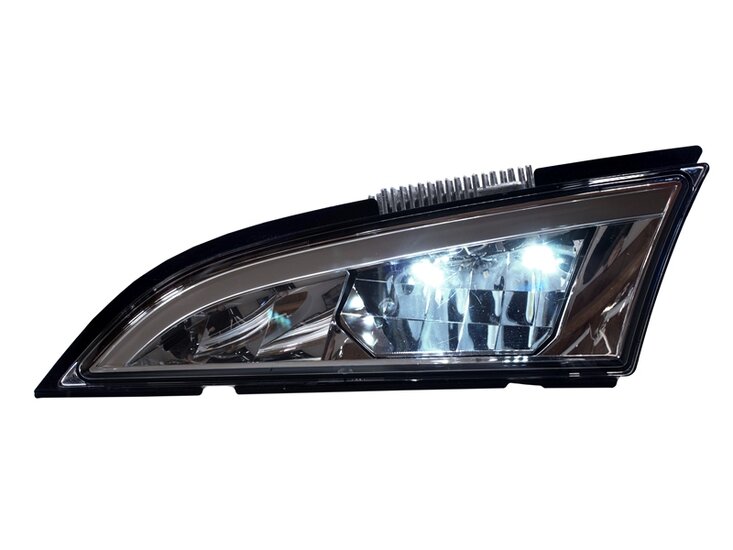

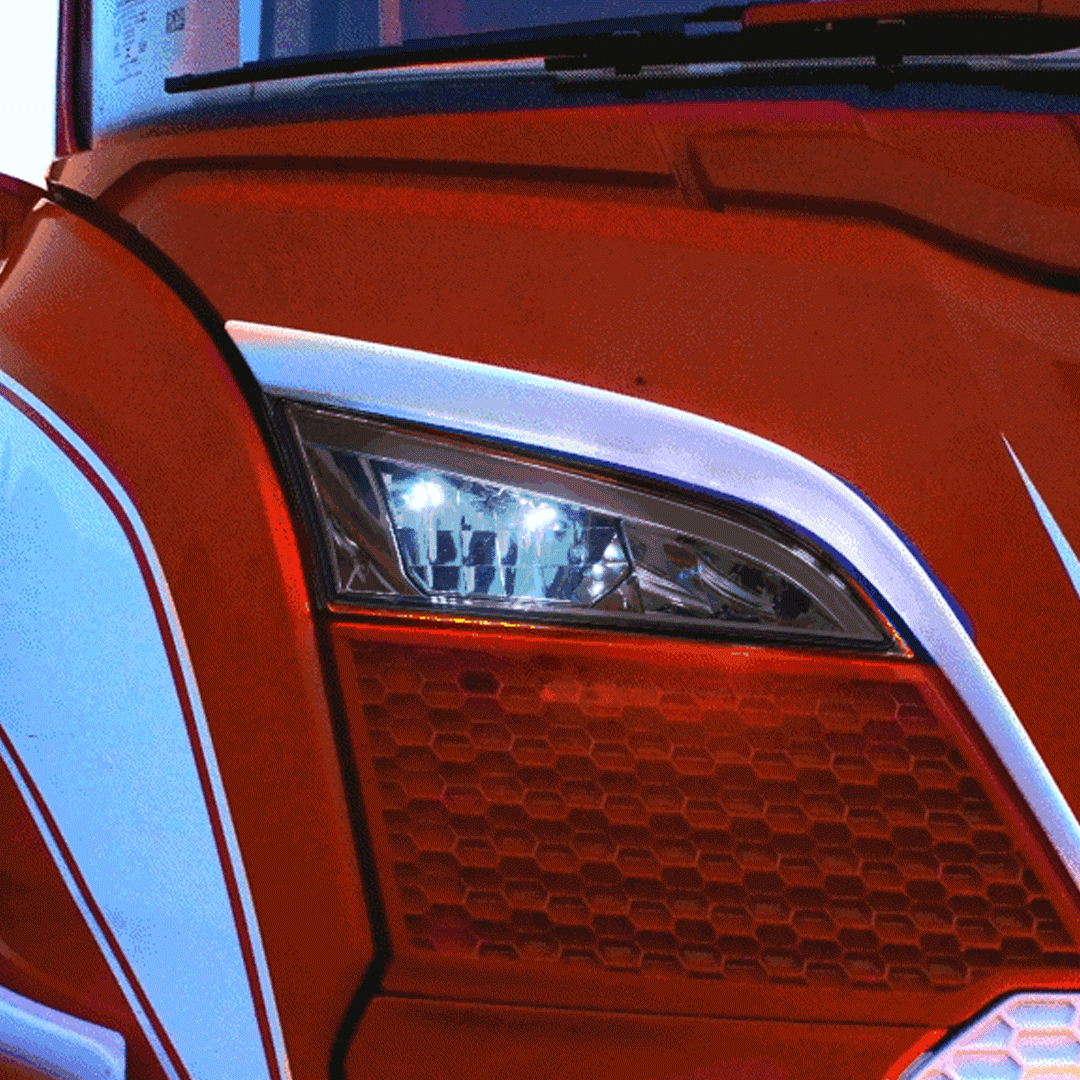

Upgrade your Scania with this high-quality LED position light + strobe emitter. Specifically designed for Scania models from 2023, this emitter offers bright, non-blinding lighting in two colors. The smart dual-color functionality, along with strobe and greeting modes, makes this product ideal for added visibility and style without affecting the original high beam. With easy installation and improved lamp accessibility, this LED upgrade will elevate your Scania's lighting performance.

Specifications:

• Compatible with: Scania 2023+ models
• Number of LEDs: 6

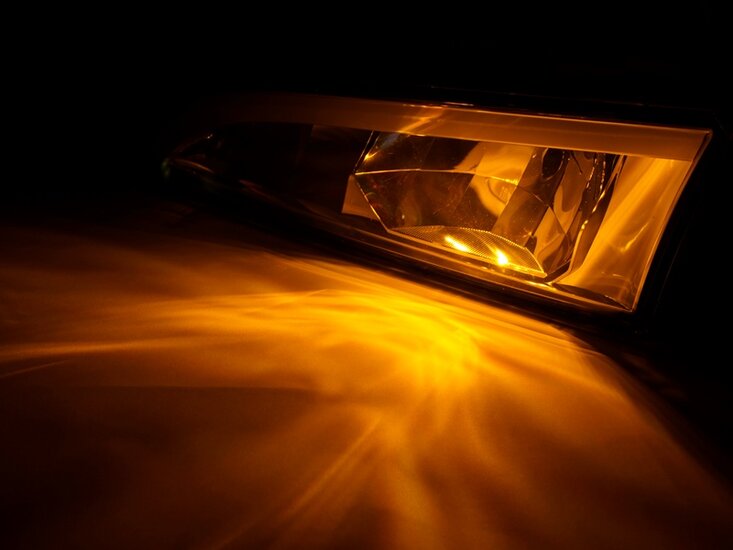

• Color options: White and Yellow (dual-color)
• Functions: Position light (white and yellow), Strobe mode, Greeting function
• Control: 3 dip switches for strobe patterns and split-flash
• Compatibility: Specifically designed for Scania 2023+ models with limited internal space
• Cable length: 3 meters
• Includes a controller for color switching and strobe control

Wiring instructions:

1. Minus/ground: Brown wire
2. Plus for white position light: White wire
3. Plus for yellow position light: Green wire
4. Mounting:
   • Unscrew the lamp housing and remove the original emitter.
   • Install the new emitter on top of the original using the included spacer and 14mm screws.
   • Route the cable out through the blue valve at the back of the lamp.
   • You may need to enlarge the valve opening with a drill.
   • Secure the cable with glue and apply shrink tubing for a solid seal.
5. Controller: Adjust the strobe mode and split-flash using the dip switches on the board.
