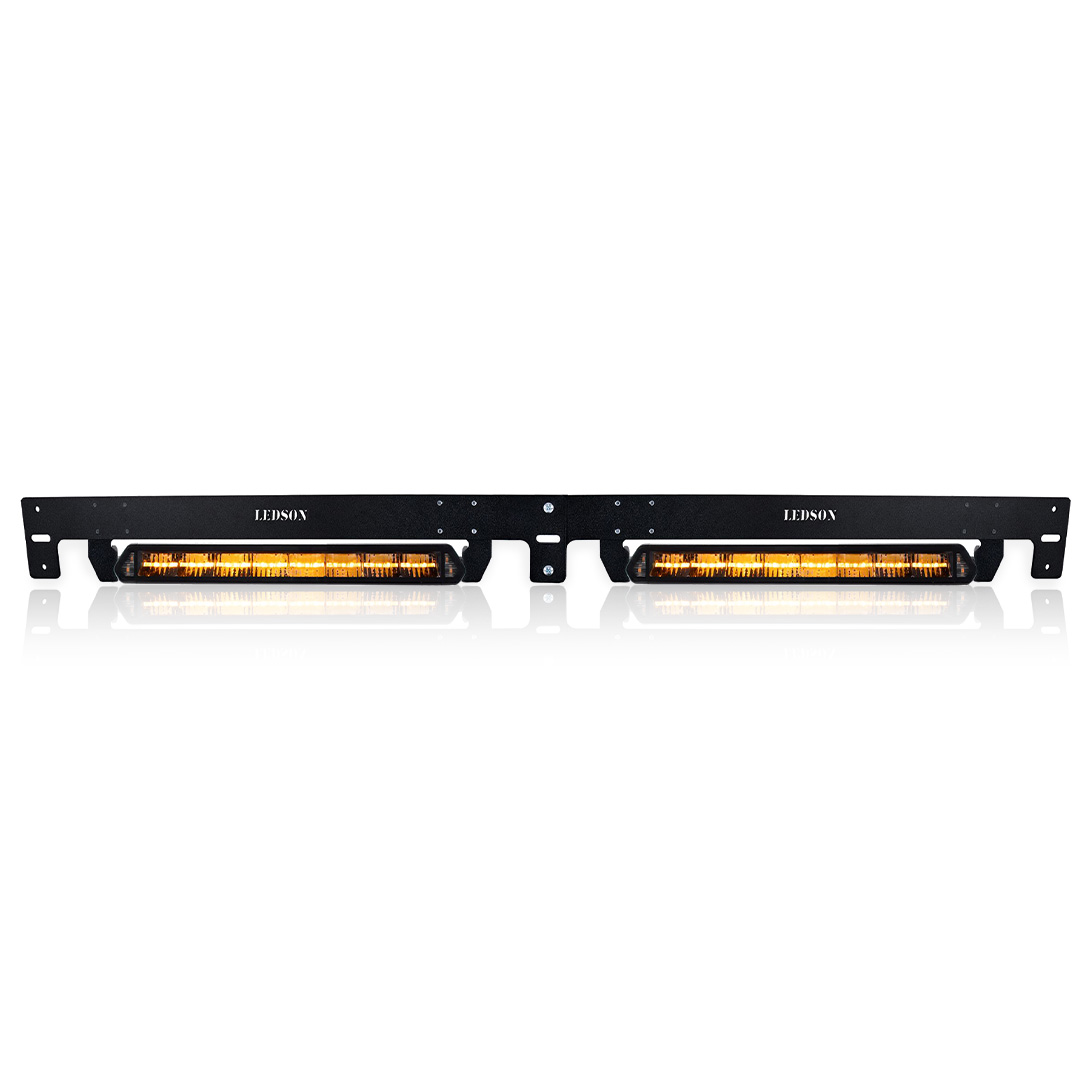

LEDSON - 2x EPIX14+ STROBE LED BAR PACKAGE FOR VOLVO FH21+

The LEDSON - 2x EPIX14+ STROBE LED BAR PACKAGE is a convenient and powerful lighting solution for your Volvo FH (model year 2014-2020). This package includes two Epix14+ LED bars that you can easily install with the included mounting kit. You can either place them discreetly behind the grille or let them protrude, depending on your preference. With the supplied adapter cables, connecting to the truck's existing wiring is a breeze. The LED bars are designed to provide bright and visible lighting, even in tough conditions, and feature flash patterns to make you extra visible.

Specifications

• Included in the package:

  • 2 x Epix14+ LED bars (artnr 334915089)
  • Installation kit with necessary components and instructions
  • Adapter cable with Volvo connector (3-pole to 2-pole DT)
  • DT Branch (1 male to 2 female connectors)
  • DT extension cable (40 cm)
  • 2 x DT adapter (2-pole to 6-pole)

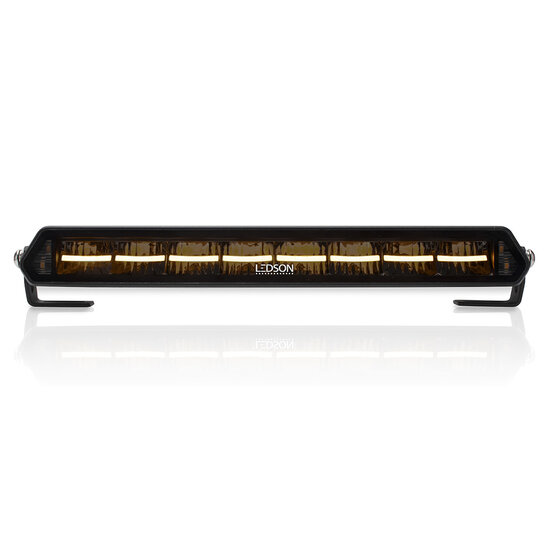

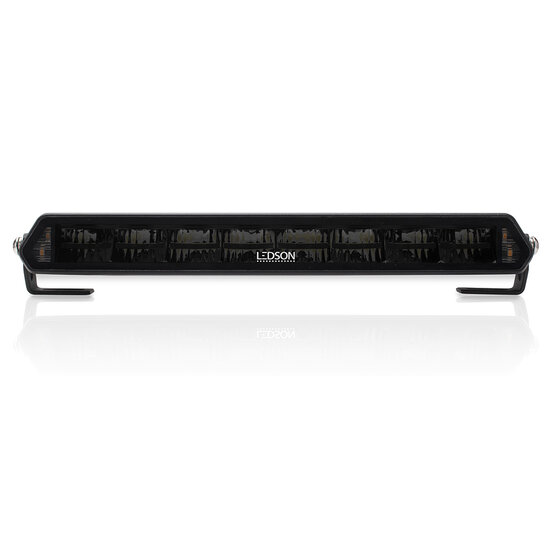

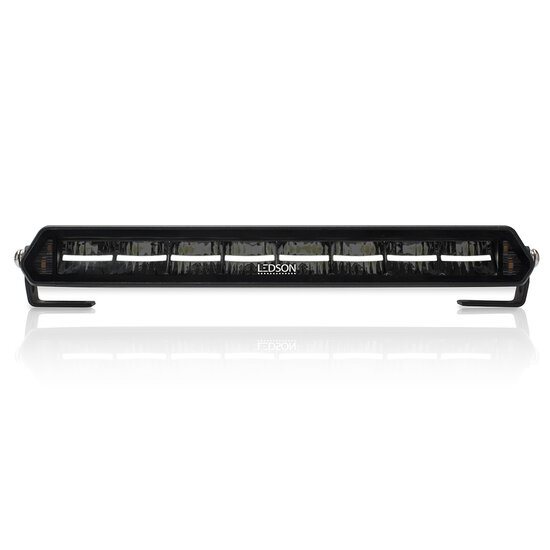

• Epix14+ LED Bars:

  • Position light: Dynamic and integrated into the reflector
  • Light pattern: Driving Beam (wide and elongated)
  • E-markings: R112, R7, R10 (approved)
  • Range: Up to 328 m at 1 lux, 459 m with Powerboost
  • Lumens: Up to 9,800 lumens (theoretical), 7,300 lumens (actual)
  • Color temperature: 5000K (neutral white)
  • Power: 120 W (8 x 15 W LEDs)
  • Voltage: 9-36V
  • IP rating: IP69K (water and dustproof)
  • Material: Aluminum and polycarbonate lens

• Flash Patterns:

  • Variable flash patterns (single, triple, quadruple, burst)
  • Flash frequencies from 1.25HZ to 10HZ

• Dimensions & weight (per LED bar):

  • Width: 357 mm
  • Height: 43 mm
  • Depth: 61 mm
  • Weight: 1.2 kg

Note: The DT connector must not be cut, as this may lead to moisture issues and will void the warranty.
