LEDSON - 2x ORBIX14+ LED BAR PACKAGE FOR VOLVO FH21+

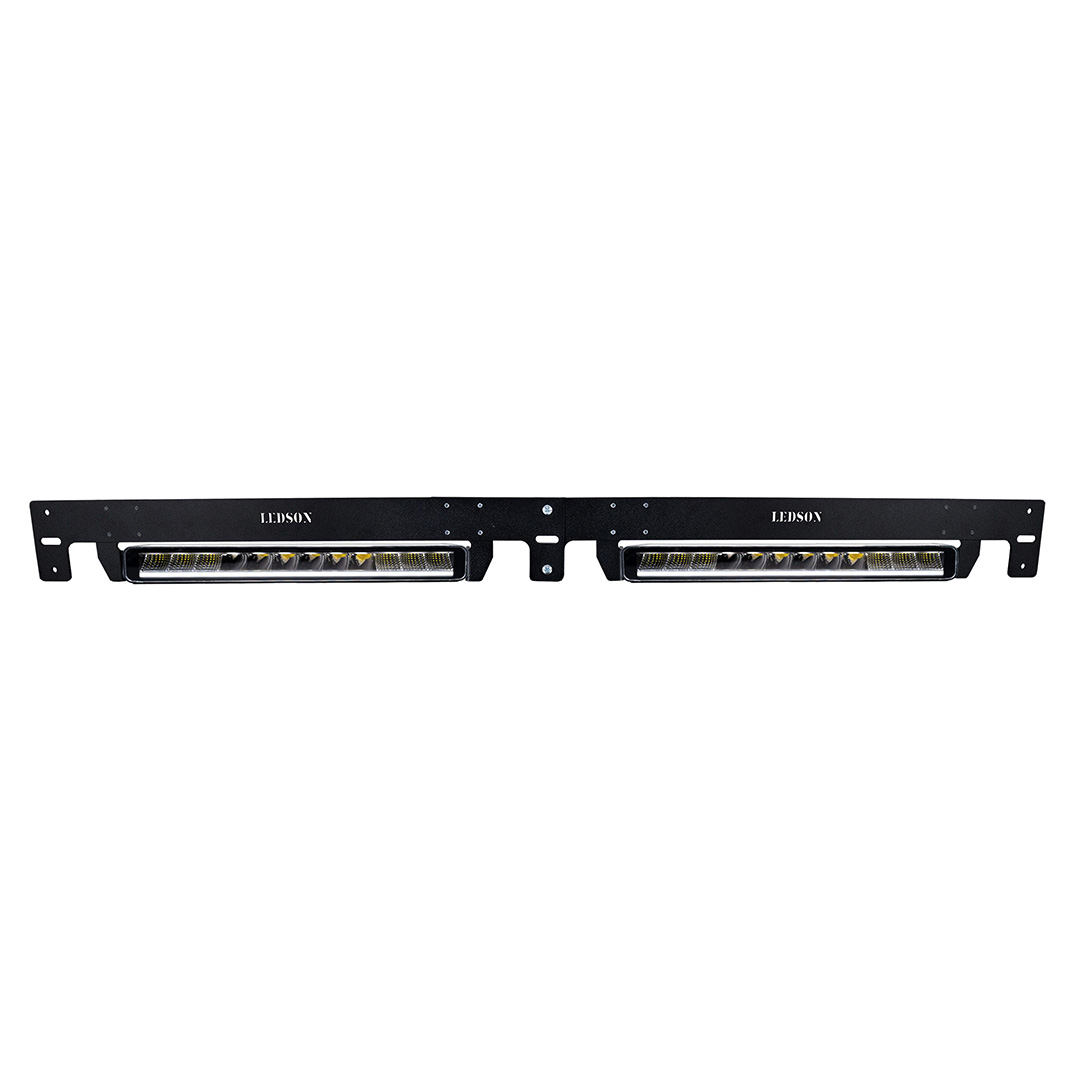

The Ledson 2 x Orbix14+ LED-bar package is specially designed for Volvo FH models from 2021 onwards. With this package, you get two Orbix14+ LED bars, an installation kit, and an adapter cable that makes connecting to the truck easy. You can mount the LED bars discreetly behind the grille or let them protrude.

What’s Included in the Package?

• 2 x Orbix14+ LED Bars (item no 33501255)
• Installation Kit with all necessary components for a quick and easy setup, including installation instructions
• Adapter Cable with Volvo connector

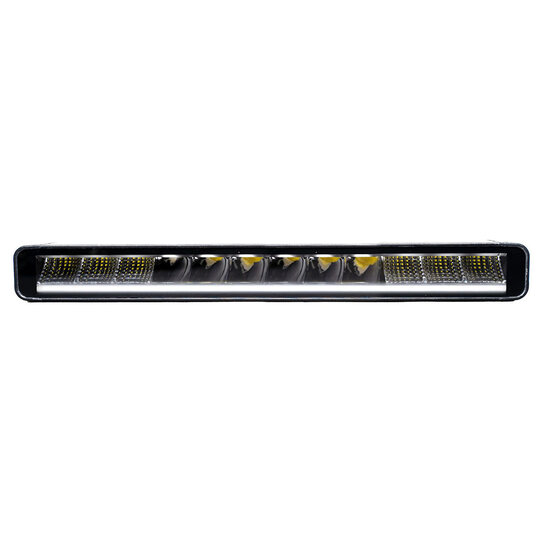

The Orbix14+ LED bar features a modern position light with dynamic ignition. This light illuminates with a unique motion pattern, helping you stand out and elevating your vehicle's appearance. The bar is E-marked according to ECE R149 and has a "driving beam" pattern that optimally enhances your vehicle's existing high beam.

Specifications per LED Bar:

• Position Light with dynamic ignition
• Selectable Position Light: white or amber
• E-mark: ECE R149/R10
• Light Pattern: “Driving beam” (wide and elongated)
• Range: 300 m at 1 lux
• Lumen: 5040 (raw), 4500 (effective)
• Color Temperature: 5700K (cool white)
• Two Mounting Options

Technical Data per LED Bar:

• Power: 60 W (12 x 5 W LED)
• Voltage: 10-32V
• IP Rating: IP69K (water and dust tight)
• Material: Aluminum housing and polycarbonate lens
• DT Connector: included

Dimensions & Weight per LED Bar:

• Width: 367 mm
• Height: 42 mm
• Depth: 58 mm
• Weight: 1.45 kg

Note: The DT connector must not be cut to prevent moisture damage; doing so will void the warranty. The DT connector (male) with joint is included with the product.
