LEDSON Castor7 - 7" LED SPOTLIGHT 60W

A distinctive 7 " spotlight in modern black for those who want something gritty and tougher than the traditional" tamare "look of extra light today. Looks as pretty as dormant as working! Comes with a full 24 month warranty

- Tough black 7 "LED extra light with eye-catching position light!
- E-marked (E8 ref.30), ECE R112 / R7 / R10
- Equipped with TIR optical system (Total Inner Reflection)


-TIR reflectors
TIR stands for Total Inner Reflection and means that all light is effectively reflected and directed before it is sent out of the reflector. The spotlight (the light that is not directed but which disappears "unconcentrated" out of the illumination without making any real use) is minimized. A traditional reflector directs and focuses most of the light but far from everything.

In summary, you get more efficient light on the road and take the utmost advantage of each LED on the outside light with the TIR reflectors!

 - Driving Beam light image
Driving Beams reflectors are all computer-framed and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the car's existing headlight and light image.

 - Mounting on the vehicle
Can be mounted smoothly and nicely by means of a number plate holder or cabinet. See our various accessories for mounting options.

 Characteristics:
    E-marked (E8, ref. 30), ECE R112 / R7 / R10
    EMC-safe (do not disturb the radio)
    With position light (4 LEDs)
    "Driving beam" light image (wide and oblong)
    5400 lumen (theoretical), 4590 lumen (actual)

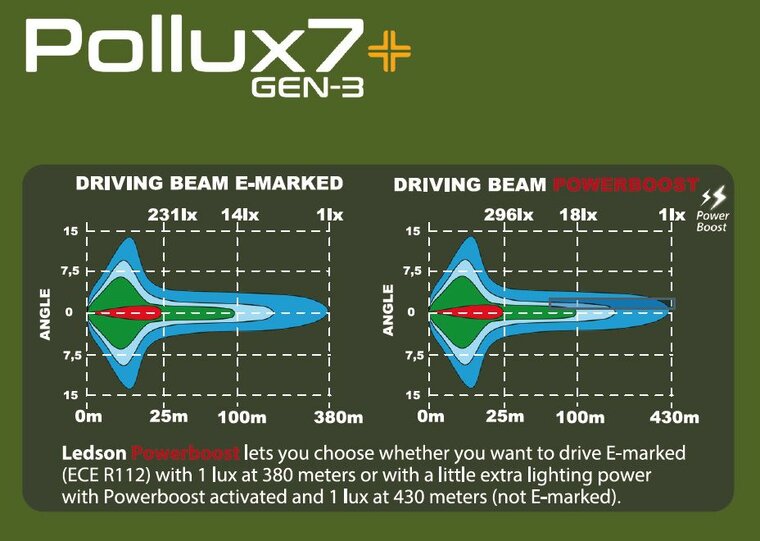

    Range 760 m (0.25 lux), 380 m (1 lux)
    Cold white light (6500 K)
    TIR Optical System (Total Inner Reflection)
    Pressure equalization membrane
    24 month warranty

 Technical data:
    60 W (12 x 5 W LG Innotek LED)
    Nominal power 50.4 W
    IP68 (water / dustproof)
    DT connector (supplied)
    Electronic heat management
    Voltage 9-36 V
    Load 4.2 A @ 12 V and 2.0 A @ 24 V

 Dimensions & Weight:
    Width: 180 mm
    Height: 191.4 mm (incl bracket)
    Depth: 48 mm
    Weight: 1.2 kg

 Included:
    Castor7 LEDSON LED extra light 7 "
    Bolts and screws to secure the extra light with a centered attachment point
    DT connector (3 pole)
    installation instructions

 Installation instructions for cables (detailed installation instructions included):
    Red: Extralight (+)
    Black: Extralight / Position light (- ground)
    White: Position light (+)
