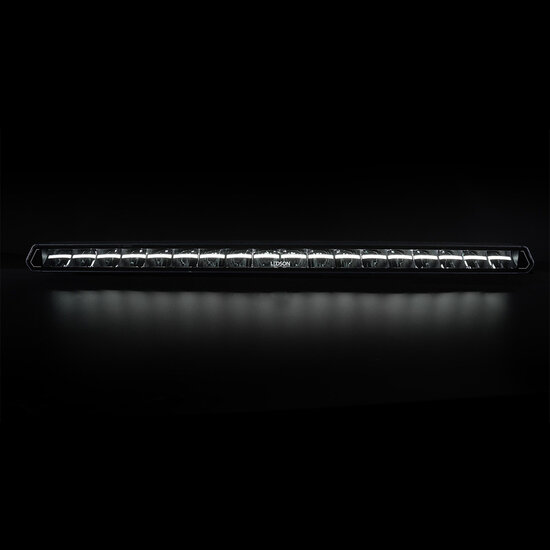

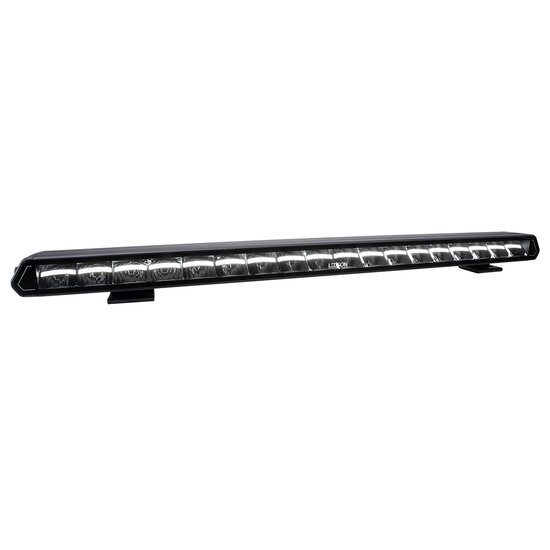

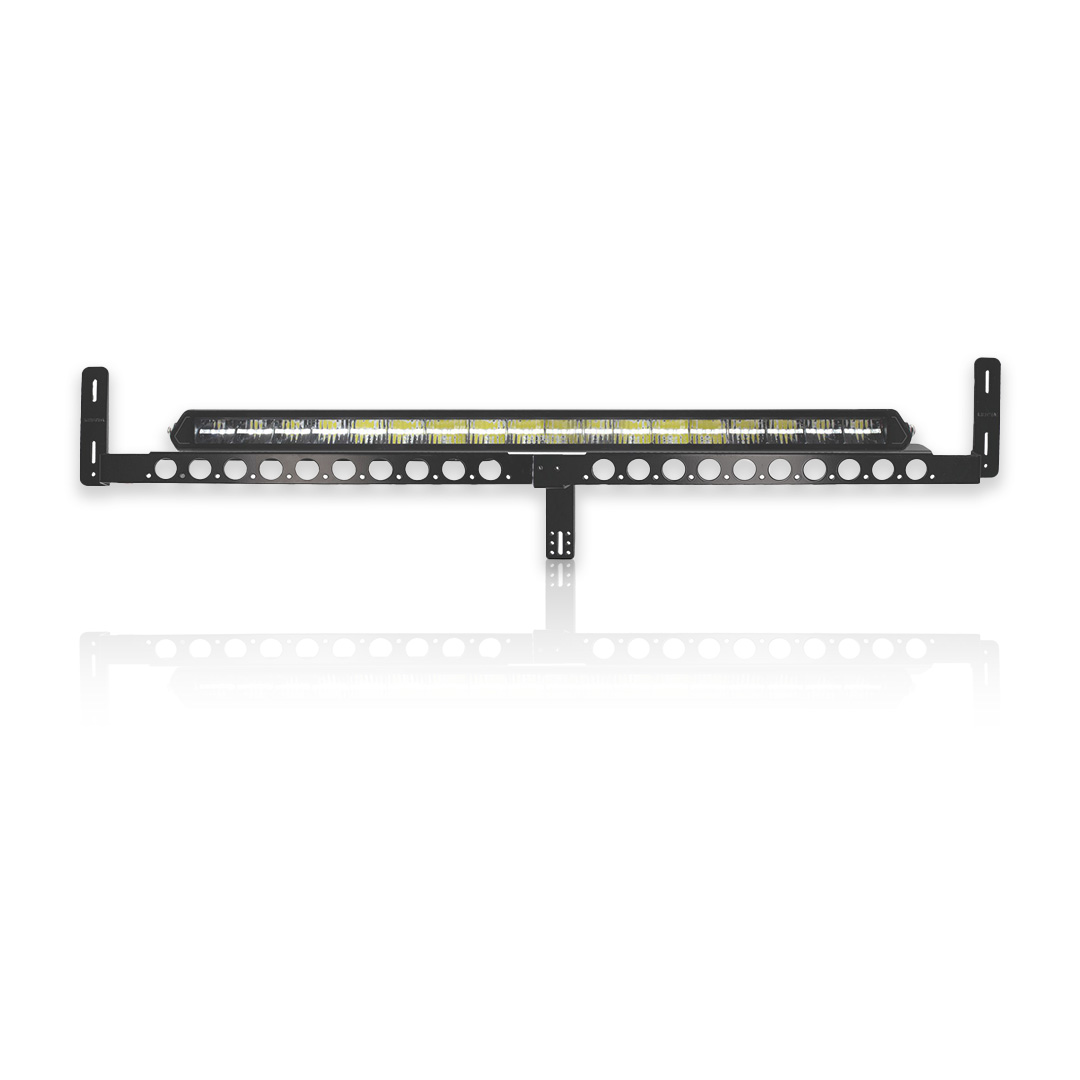

The EPIX30+ LED bar with Powerboost and dynamic position lights is an efficient lighting solution for Volvo FH trucks from model year 2014 to 2020. Installation is quick and simple. The LED bar can be mounted behind the grille or protrude through it.

The EPIX30+ stands out with its integrated position lights and the ability to use the Powerboost function for extra brightness when needed. The light pattern improves the truck’s existing headlights. The package also includes an adapter cable for easy connection to the vehicle’s wiring.

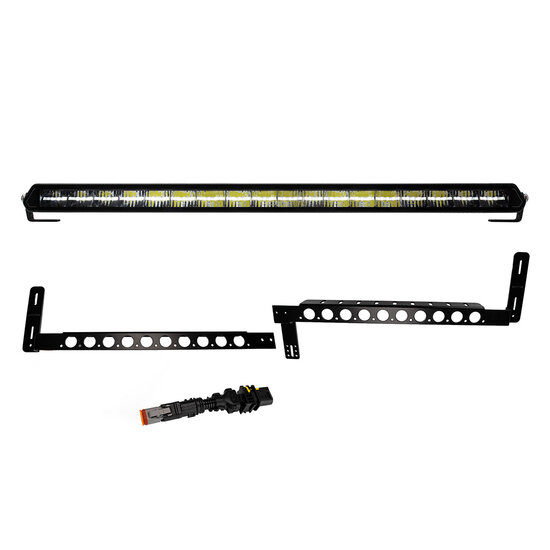

Included in the package:

• 30" EPIX30+ LED bar (article number 334915188)
• Installation kit with all necessary components
• Adapter cable with Volvo connector

Specifications:

• Position light: Dynamic lighting, integrated in the reflector

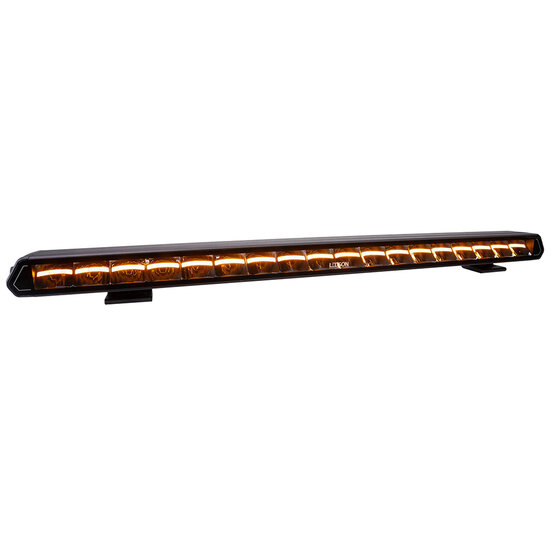

• Position light color: White or yellow/orange
• Light pattern: Driving Beam (wide and long)
• E-marking: R112, R7, R10 (EMC rated)
• Range: 458 m (1 lux), Powerboost: 672 m (1 lux)
• Luminous output: 23,200 lumens (theoretical), 16,300 lumens (actual)
• Color temperature: 5000K (Neutral White)
• Power: 270 W (18 x 15 W LEDs)
• Voltage: 9-36V
• Protection rating: IP69K (water and dustproof)
• Dimensions: 740 mm wide, 43 mm high, 61 mm deep
• Weight: 2.25 kg
