The low construction height makes this ramp from LEDSON one of the market's most easily to place Led-bars! At a distance it is barely visible but the closer you get, the more visible its distinctive aggressive and modern looks becomes.
This is a guiding LED-bar for those who want the latest & the thinnest but something that in a confident way nevertheless gives the vehicle an attractive added value. And of course the most important thing: Juno is loaded with amounts of light!! 18 sharp OSRAM LEDs.
What more is needed?
DT relay kit: We strongly recommend using our DT relay with original connection to connect the LED ramp to the vehicle. You then have the opportunity to choose between controlling the ramp with a button or switching it on to the main beam (the ramp will automatically switch on and off with when the main beam is switched on and off, which most people prefer).
There is then also a fuse between the auxiliary light and the battery to prevent any damage to the battery and other equipment. Detailed installation instructions are included with the DT relay.
Characteristics:
E-marked (ref. 37.5), ECE R112 (approved as extra light)
EMC secured according to ECE R10

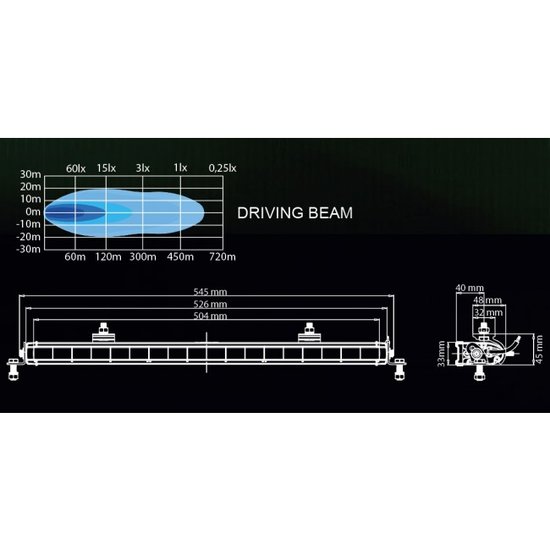

Driving beam light image (wide and oblong)
7560 lumens (theoretical), 4690 lumens (actual)
Color temperature 5700K (cold white)
Range 720 m (0.25 lux), 450 m (1 lux)

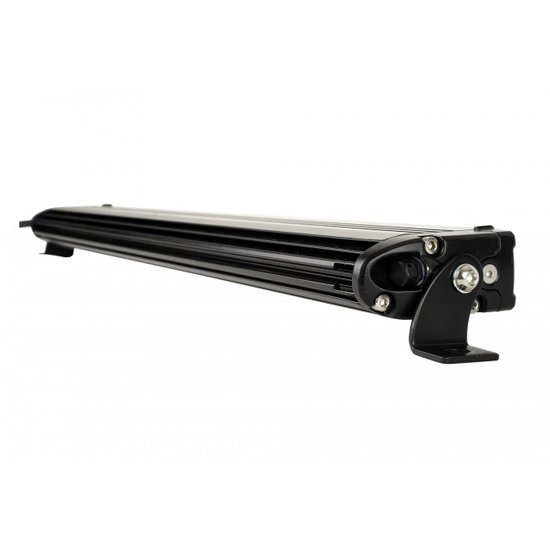

Double mounting options
Technical data:
90W (18 x 5W OSRAM LED)
IP68 (water / dustproof)
Aluminum housing and polycarbonate lens
6.35 A at 12 V and 3.03 A at 24 V
DT connector (included)
Voltage: 10-48 V
Measurents:
Width: 528 mm
Height: 33 mm (excl. Brackets)
Depth: 68 mm
Weight: 1.28 kg
NOTE: The DT contact must not be cut as it involves an increased risk of moisture damage and the guarantee then expires. DT connector (male) with joints included with the product.
