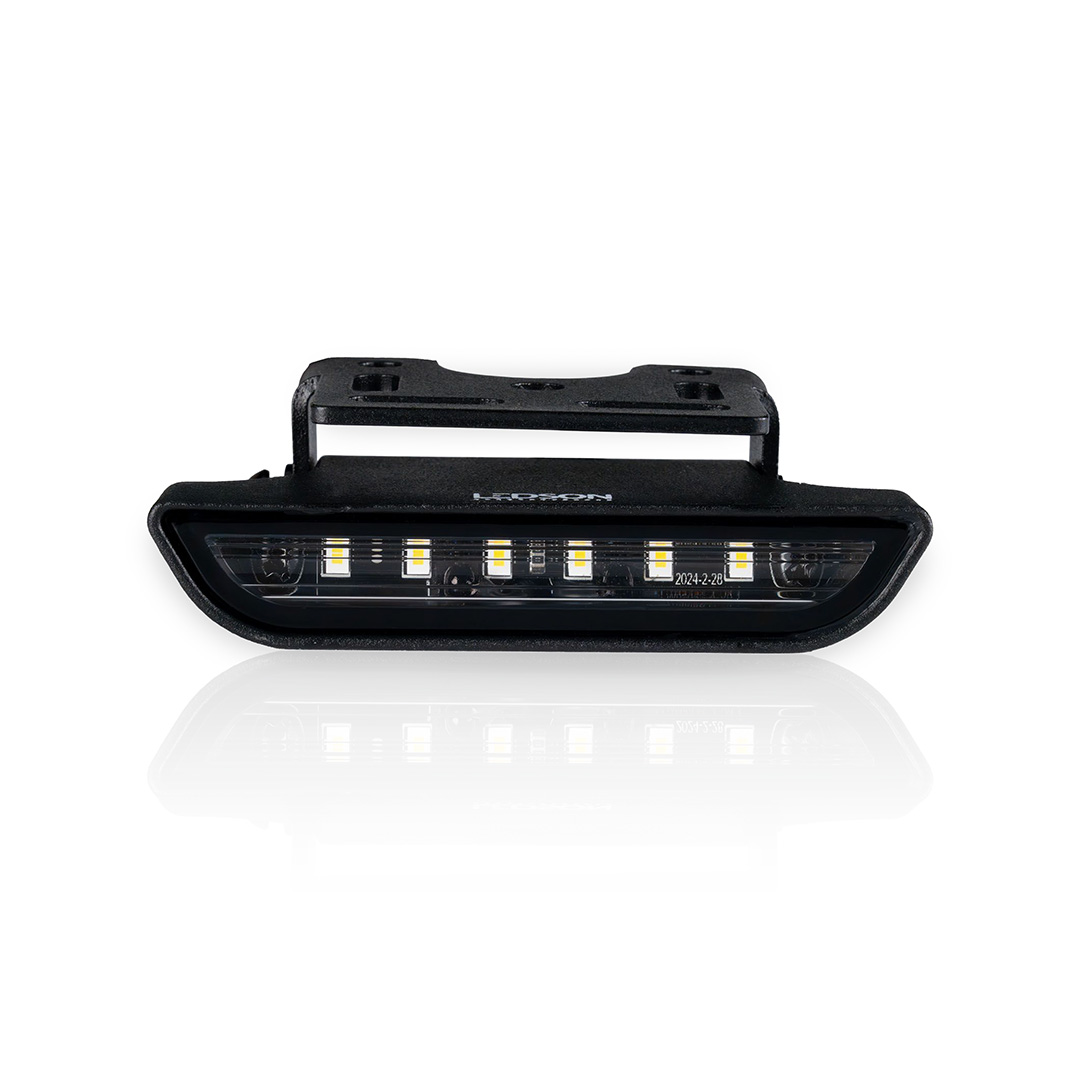

LEDSON - NANO REVERSE LIGHT 30W

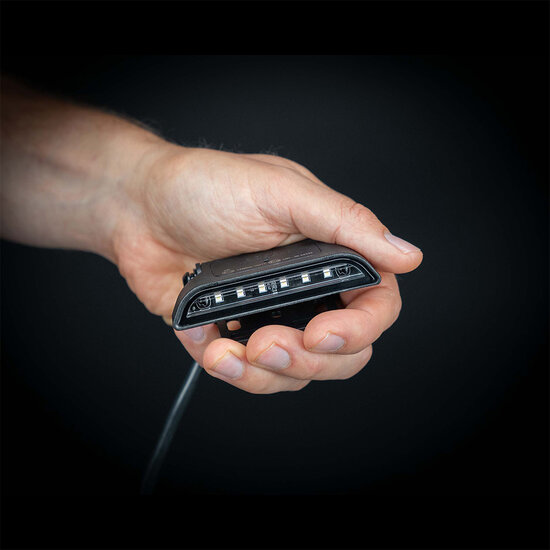

The Nano reverse light from Ledson provides powerful lighting in a compact size. With a height of just 17 mm, this light is easy to mount on trucks and other vehicles. Despite its small dimensions, it offers a wide beam pattern of 140°, ensuring you always have a clear view while reversing.

The Nano is E-marked and meets the ECE R23 standard for reverse lighting. Its modern design fits well with your vehicle and is both practical and stylish.

Specifications:

• E-mark: ECE R23 (approved as a reverse light)
• Range: 31 m (1 lux)
• Lumen: 2800 lumens (actual 1750 lumens)
• Light distribution: 140° wide beam pattern
• Color temperature: 5000K
• Power: 30W (6 x 5W LED)
• IP rating: IP68 (water and dust proof)
• Electronic thermal management
• Voltage: 9-36V
• Current consumption: 2A at 12V and 1A at 24V
• EMC certified: ECE R10

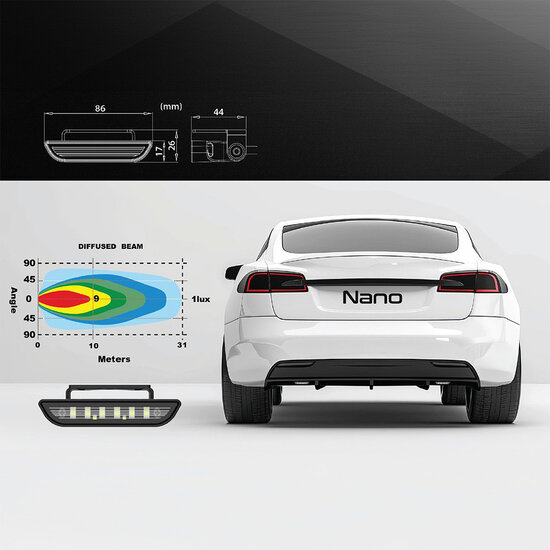

Dimensions:

• Width: 86 mm
• Height: 17 mm (26 mm with bracket)
• Depth: 44 mm
• Cable: 30 cm with 2-pole DT connector

Note: Do not cut the DT connector, as this increases the risk of moisture damage and voids the warranty. A male DT connector with a splice is included.
