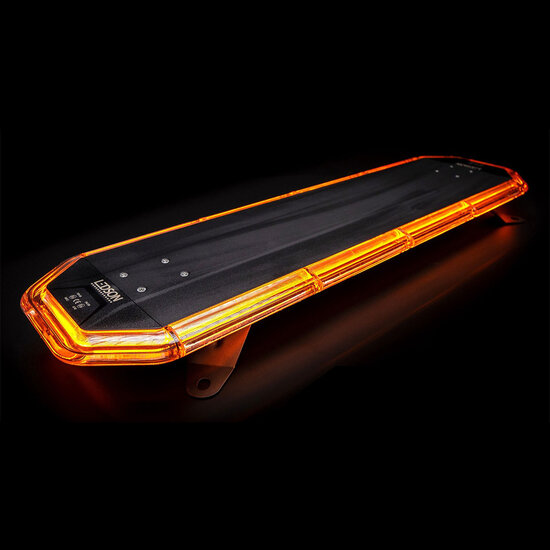

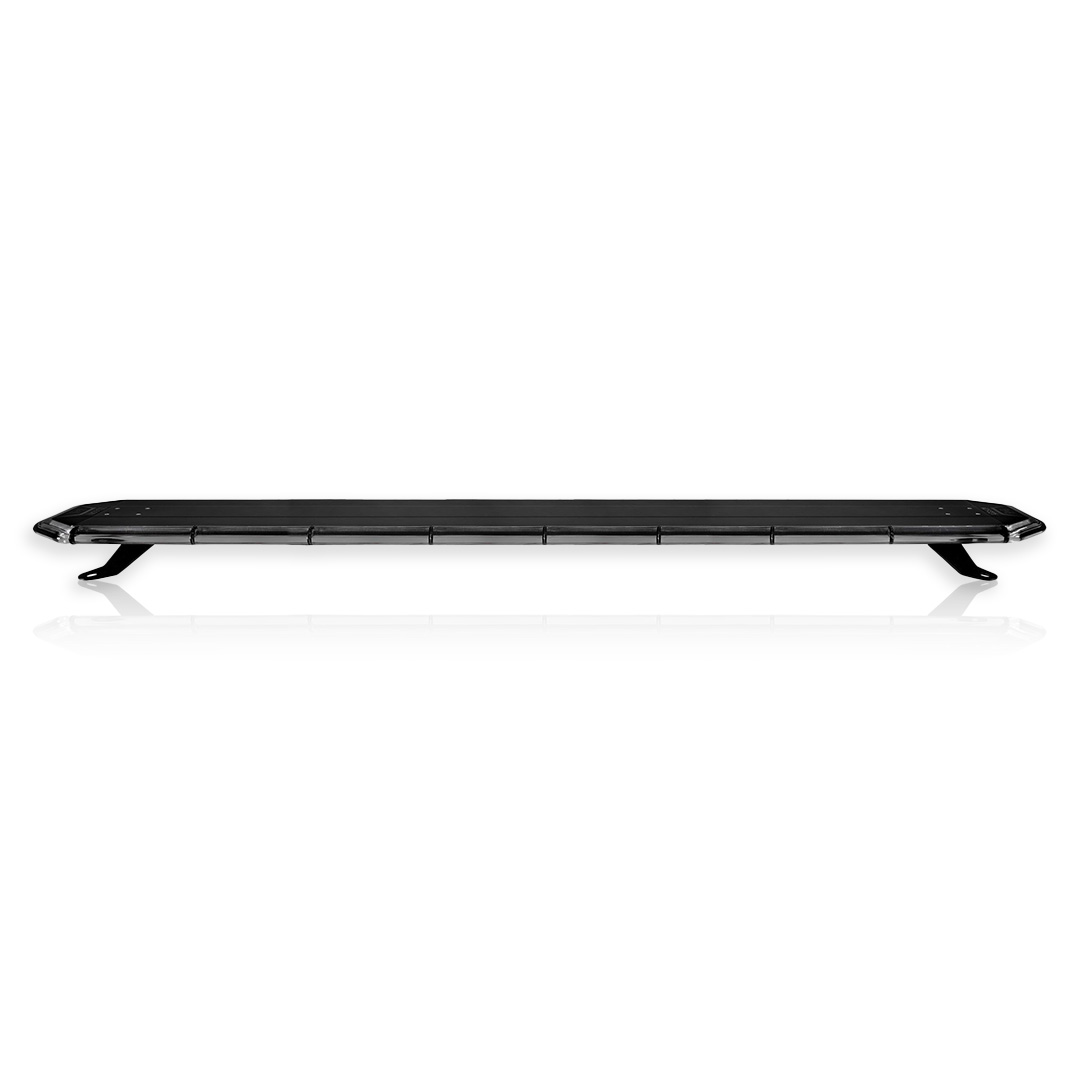

LEDSON - OPTIGUARD PROJECTOR WARNING LIGHT LED BAR

The Ledson OptoGuard Protector is an ultra-thin warning light (only 26 mm high) with an aerodynamic design to minimize air resistance. All lengths are ECE R65 class 2 approved, meaning they also have a night mode where the strobe is dimmed.

The Protector series features a popular triple flash pattern (alternating left and right), highly visible both day and night.

Mounting and control:
The lengths of 1388 mm, 1541 mm, and 1847 mm can be easily mounted with universal roof brackets or the included feet. They can be controlled via cables or wirelessly with a remote control (part number 51423001, sold separately).

Specific roof brackets:
We also have custom roof brackets for vehicles like Amarok, Caddy, Crafter, Navara, Ranger, Sprinter, Transit, Transporter, Vito, and V250.

Specifications:

• E-marking: ECE R65 class 2
• EMC-secured: ECE R10, CISPR25 class 3
• Strobe patterns: 13 or 17 different, depending on the length
• Power: 80W-236W (depending on length)
• Glass color: Clear
• LED color: Orange
• Voltage: 10-30 V
• Waterproof: IP67
• Warranty: 36 months

Dimensions:

• Length: 1388 mm, 1541 mm, 1847 mm
• Width: 220 mm
• Height: 26 mm
• Cable length: 5 m (magnetic mount 2.4 m and center bolt approx. 0.5 m)

Strobe patterns

• Triple flash, alternating left and right - day mode (R65 class 2)
• Triple flash, alternating left and right - night mode (R65 class 1)
• Cruise mode (dimmed solid light)
• Flashing from the center
• Flashing to the left
• Flashing to the right
• Single flash - day mode (R65 class 2)
• Single flash - night mode (R65 class 1)
• Double flash - day mode (R65 class 2)
• Triple flash, alternating front/back/all
• Triple flash, alternating middle/two ends/all
• Quadruple flash
• Single flash alternating left and right
• Flashes alternating in and out
• Wandering flash
• 2 x wandering flash - day mode (R65 class 2)
• 2 x wandering flash - night mode (R65 class 1)
