The

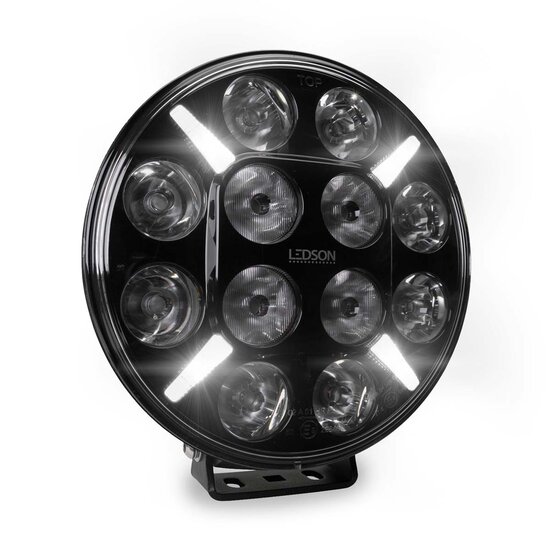

LEDSON Pollux9+ Gen3 offers advanced lighting technology with an impressive combination of power and flexibility. This spotlight is ideal for those who need maximum illumination, with the latest innovations for unmatched performance and durability.
Features and Benefits:

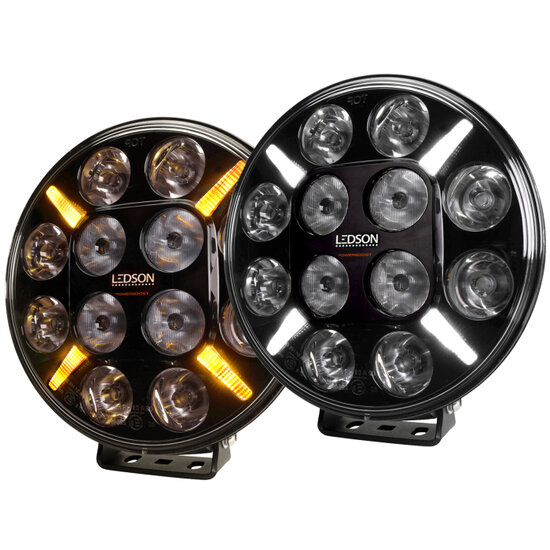

- Selectable Position Light: Choose between yellow/amber or xenon white position light, depending on your preference and needs.
- Power Boost Function: The Gen3 features an innovative Power Boost function that allows you to significantly increase light output and range. In Power Boost mode, you get an impressive range of up to 805 meters at 1 lux and a light output of 13,000 lumens (theoretical) / 10,500 lumens (actual). This function is ideal for situations where maximum visibility is essential. Activate Power Boost by simply flashing the light switch 10 times quickly and holding the light on for approximately 5 seconds after the eleventh flash.
- TIR Reflectors: The TIR (Total Inner Reflection) system ensures that all light is effectively reflected and focused before it is emitted. This minimizes stray light and optimizes light distribution, allowing you to get the most out of each LED.
- Lighting Pattern: The Spot Beam provides a concentrated beam of light for maximum viewing distance and precision.
Specifications:
- E-marked (E8, ref. 37.5, ECE R112 / R10 / R7 for white position light)
- EMC protected (radio interference free)
- Range: 493 meters at 1 lux in standard mode and 805 meters at 1 lux in Powerboost mode
- Lumen output: 13,000 lumens (theoretical) / 10,500 lumens (real) in Powerboost mode
- Color temperature: 5000K (neutral white)
- IP69 (water and dustproof)
- Pressure equalizing membrane for extra durability
- 36 months warranty
Technical Data:
- Power: 120 W (12 x 10 W Cree XM-L2 LED)
- Nominal power: 92.4 W
- Voltage: 9-36V
- Load: 3.2A @ 12V and 1.6A @ 24V in standard mode; 9.8A @ 12V and 4.6A @ 24V in Powerboost mode

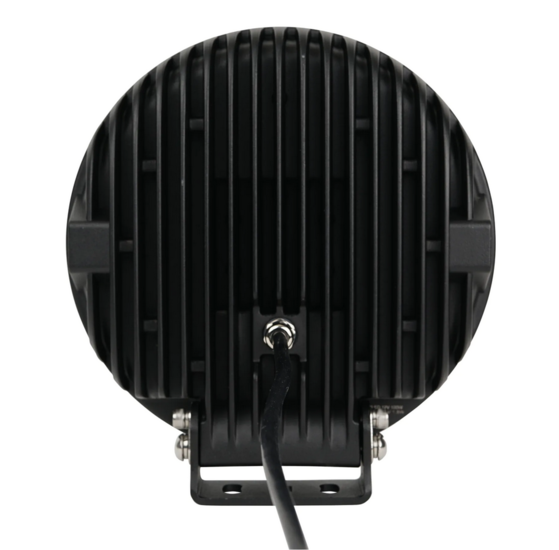

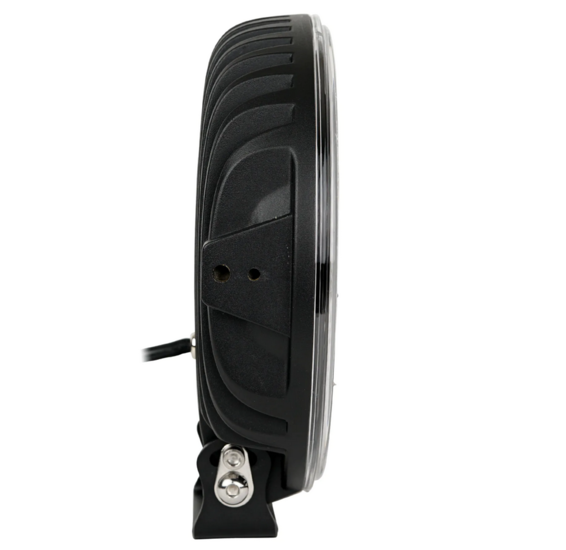

- Dimensions: Width: 218mm, Height: 234.5mm (incl. mounting bracket), Depth: 68.5mm
- Weight: 1.9kg
Supplied:
- Pollux9+ Gen3 LED auxiliary lighting
- Bolts and screws for single or double mounting
- DT connector (4-pin)
- Installation instructions
Installation instructions for cables:
- Red: Auxiliary light (+)
- Black: Auxiliary light / Position light (- ground)
- White: Position light (+) white light
- Yellow: Position light (+) yellow-orange light
NOTE: The DT connector must not be cut, as this increases the risk of moisture damage and will void the warranty.
