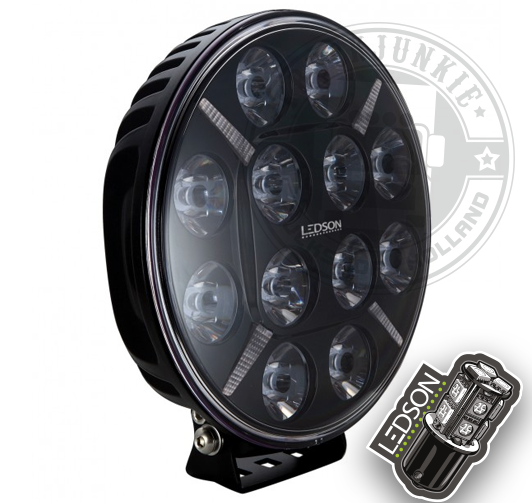

A distinctive 9-inch spotlight in modern black
Comes with a full warranty of 24 months

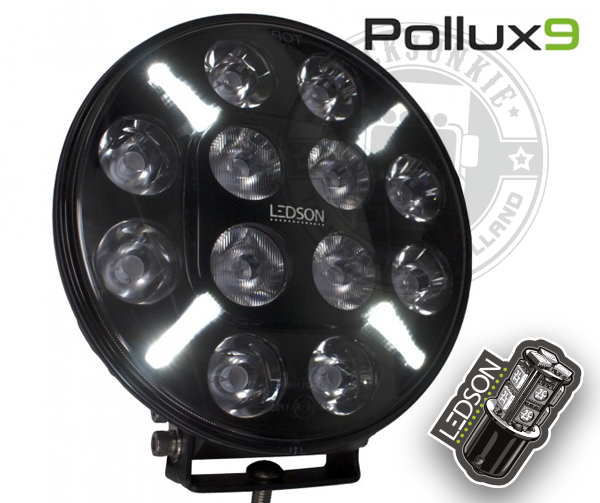

- Tough black 9 "LED spotlight with striking position light!
- E-marked (E8 ref.37.5), ECE R112 / R10
- Equipped with TIR optical system (Total Inner Reflection)


-TIR reflectors
TIR stands for Total Inner Reflection and means that all the light is effectively reflected and directed before it is sent out of the reflector. The spotlight (the light that is not directed but that "unconcentrated" from the illumination disappears without any use) is minimized. A traditional reflector steers and focuses most of the light, but far from everything.

In short, you get more efficient light on the road and benefit optimally from every LED on the outside light with the TIR reflectors!

 - Image light beam illumination
Driving Beams reflectors are all computer controlled and manufactured to offer a comparable light image as a combo, but more consistent and within the limits of what is legal. It mimics and improves the existing headlight and the light image of the car.


 Characteristics:
    E-marked (E8, ref 37.5), ECE R112 / R10
    EMC-safe (does not disturb on the radio)
    With position light (4 LEDs)

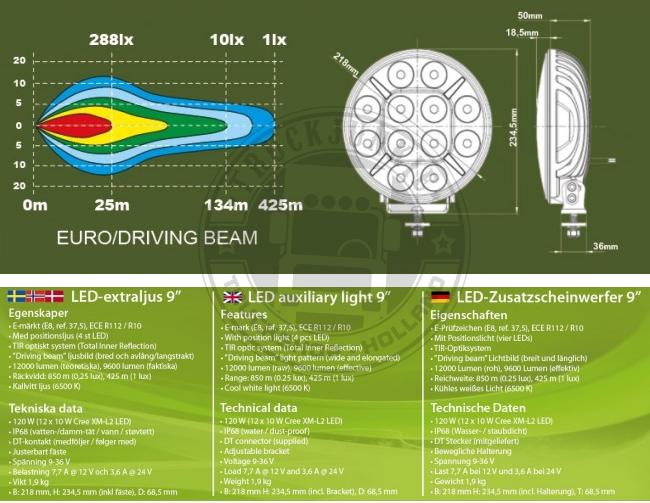

    "Driving beam" light image (wide and oblong)
    12000 lumens (theoretical), 9600 lumens (current)
    Range 850 m (0.25 lux), 425 m (1 lux)
    Cold white light (6500 K)
    TIR Optical System (Total Inner Reflection)
    Pressure compensation membrane
    24 months warranty

 Technical data:
    120 W (12 x 10 W Cree XM-L2 LED)
    Rated power 92.4 W
    IP68 (water / dust proof)
    DT connector (included)
    Electronic heat management
    Voltage 9-36 V
    Load 7.7 A @ 12 V och 3.6 A @ 24 V

 Dimensions and weight:
    Width: 218 mm
    Height: 234.5 mm (incl bracket)
    Depth: 68.5 mm
    Weight: 1.9 kg

 including:

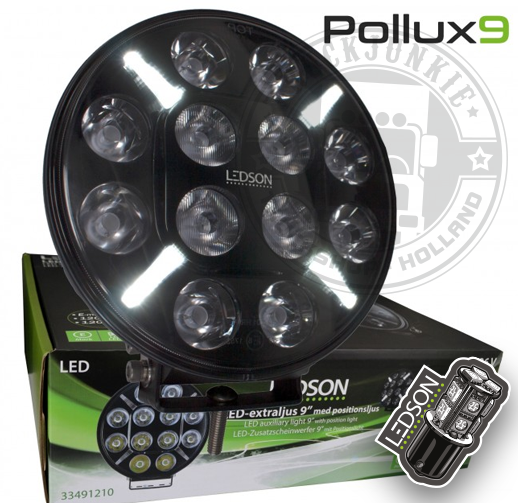

     Pollux9 LEDSON spotlight 9 "
    Bolts and screws secure the spotlight with one or two attachment points
    DT connector (3-pole) complete with DT relay cable and DT adapter 2-pole to 3-pole

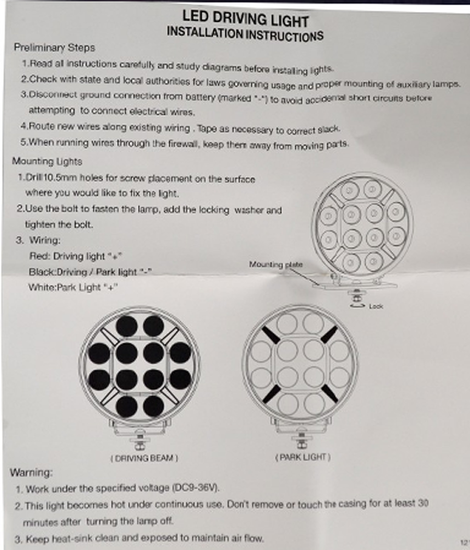

    Installation instructions

 Installation instructions for cables (detailed installation instructions included):
    Red: Extralight (+)
    Black: extralight / position light (- ground)
    White: position light (+)
