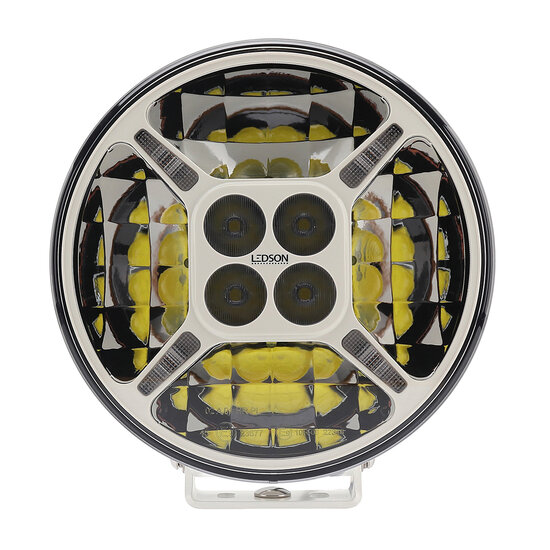

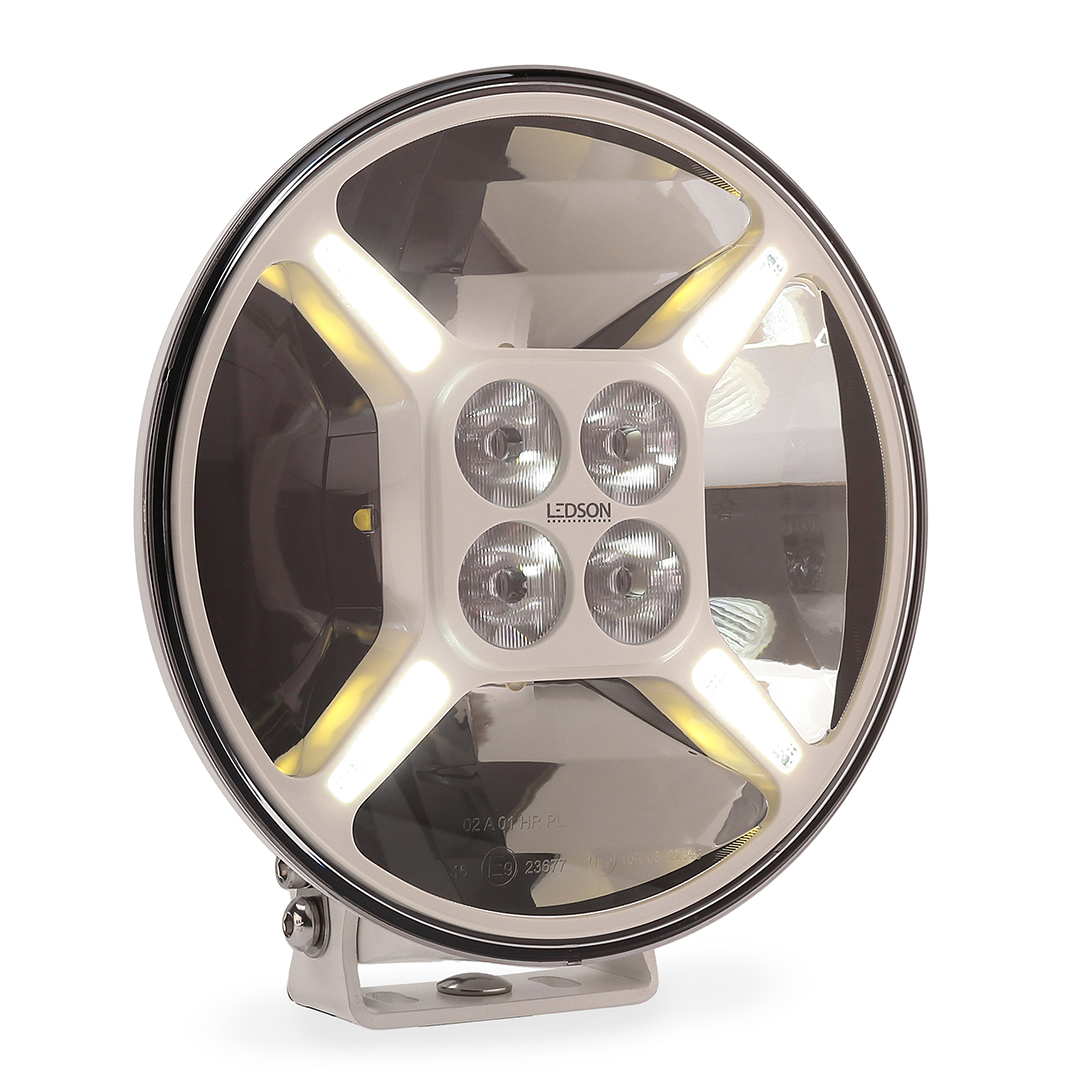

Ledson Sarox9+ Ivory White offers powerful lighting with a modern design and high-quality components, ideal for dark roads. With a range of 469 metres at 1 lux and 10200 lumens, IP69K rating and E markings, this lamp offers optimum performance and durability. The combo beam pattern provides wide illumination near and far focus for better road visibility.

Specifications

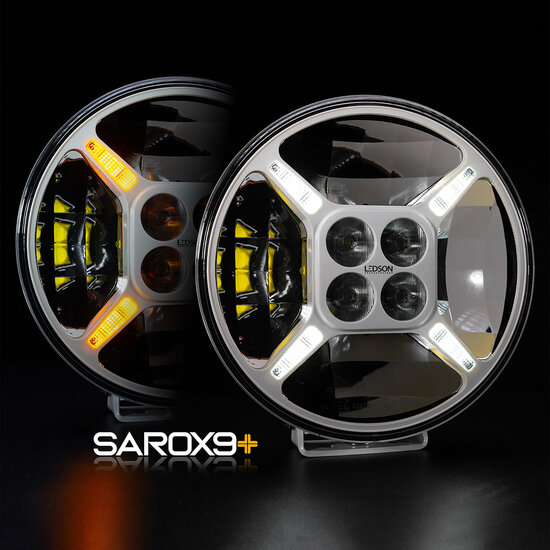

- With position lighting a yellow/orange or xenon white
- Combo light pattern
- E-markings ECE R112 (Ref. 45), R10 / R7 (white position lamp)
- Range: 938m (0.25 lux), 469m (1 lux)
- EMC protected
- 12000 lumens (raw), 10200 lumens (actual)
- Cold white light (5000K)
- TIR (Total Inner Reflection)
- ETM (Electronic Thermal Management)
- Side-reflective optical system
- Pressure compensation membrane

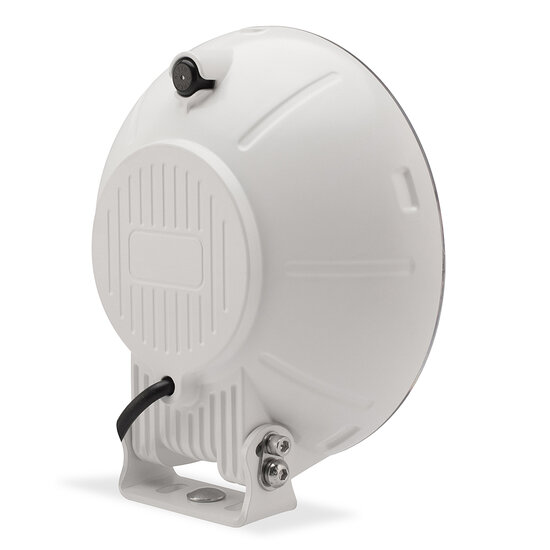

- Aluminium heat sink
- Adjustable stainless steel bracket
- Lexan polycarbonate front cover
- Polycarbonate lens
- Power output: 120W (4 x 20W Cree LED + 4 x 10W Cree LED)
- IP69K (water and dust proof)
- DT connector 4 pin included
- Voltage: 9-36V
- Main light load: 8.1A @ 12V and 4.4A @24V
- Position light load: 0.9A
- 218x218x84 mm excluding bracket (wxhxd)
- 218x233x84 mm including bracket (wxhxd)
- Cable length: 42cm
- 1.8kg

Cable installation instructions (detailed instructions included with the product):
- Red: auxiliary light (+)
- Black: auxiliary light / position light (- ground)
- White: position light (+) white light
- Yellow: position light (+) yellow-orange light

NOTE: The DT connector must not be cut, as this increases the risk of moisture damage and voids the warranty.
