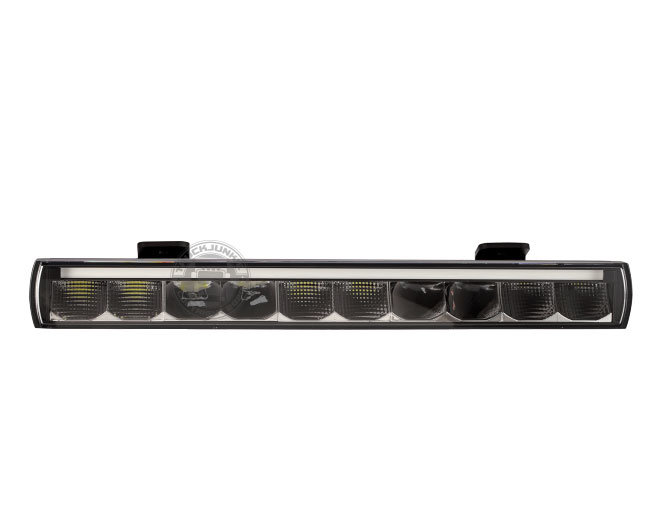

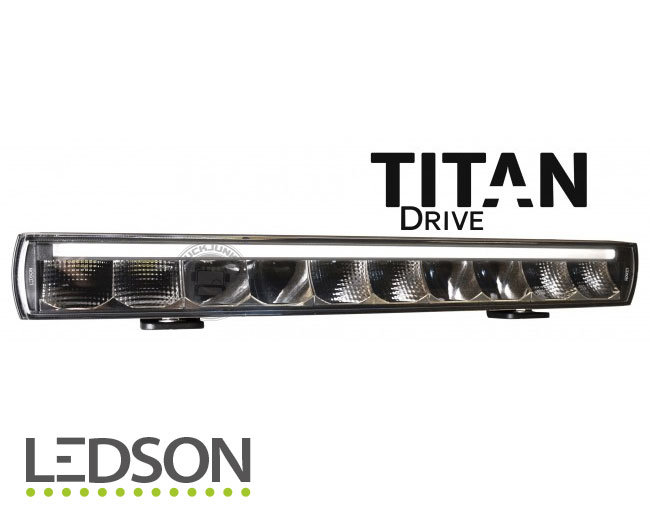

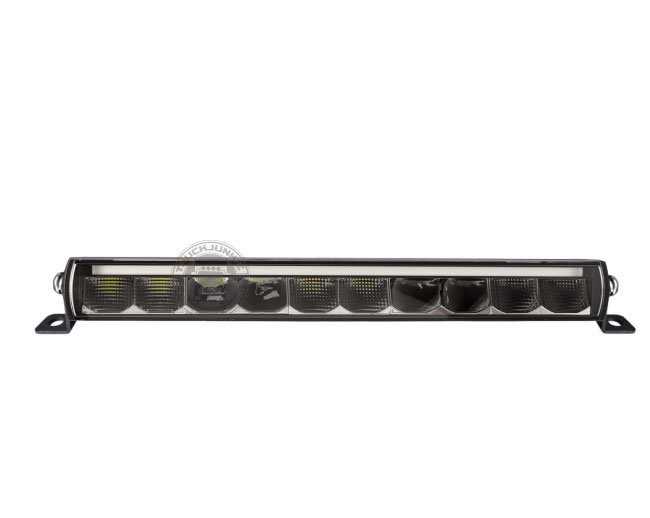

Titan Drive is for those who want a solid and stylish LED ramp that is E-labeled ECE R112 / R7 and optimizes the car's half / high beam image in an optimal way thanks to its Driving beam light. As a big plus at the edge, it is equipped with a position light that emits a soft but distinct glow.
In short, it makes you look good during the day and look good in the evening!

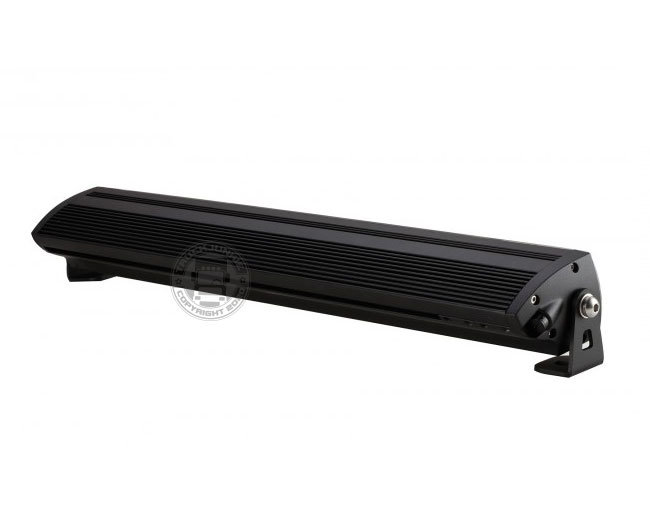

- Side mounted legs that can be rotated around their own axis to angle the ramp
- Standing slidable, rear mounted brackets that can be adjusted along the entire ramp for a very flexible mounting
-Hanging sliding, rear mounted brackets that can be adjusted along the entire ramp for a very flexible mounting
What more is needed?
DT relay kit: We strongly recommend using our DT relay with original connection to connect the LED ramp to the vehicle. You then have the opportunity to choose between controlling the ramp with a button or switching it on to the main beam (the ramp will automatically switch on and off with when the main beam is switched on and off, which most people prefer).
There is then also a fuse between the auxiliary light and the battery to prevent any damage to the battery and other equipment. Detailed installation instructions are included with the DT relay.
Characteristics:
E-marked (ECE 112, approved as extra light with reference number 45), and E-marked R7 (approved position light)
EMC-secured ECE R10 (does not disrupt the radio)
Driving beam light image (wide and oblong)
9500 lumens (theoretical), 8075 lumens (actual)
Color temperature 6500K (cold white)
Range 885 m (0.25 lux), 442 m (1 lux)
3 x brackets: standing sliding, hanging sliding, side mounted legs
Technical data:
100W (10 x 10W Cree LED)
IP68 (water / dustproof)
Aluminum housing and polycarbonate lens
Side reflective optics
Electronic heat management
6.5 A at 12 V and 3.25 A at 24 V
Pressure equalization membrane
Included:
Titan Drive LED ramp
Side mounted legs
Sliding brackets (standing / hanging)
Bolts and screws to secure the ramp to a suitable surface
DT connector (3 pole)
installation instructions

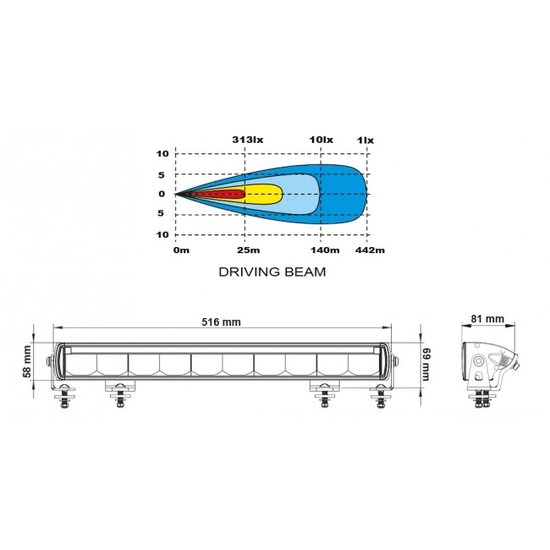

Dimensions & weight:
Width: 516 mm
Height: 58 mm
Depth: 81 mm
Weight: 1.63 kg
NOTE: The DT contact must not be cut as it involves an increased risk of moisture damage and the guarantee then expires. DT connector (male) with joints included with the product.
