Orion+ LEDSON LED SPOTLIGHT 100W - AMBER / WHITE position light

Orion+ LEDSON LED SPOTLIGHT 100W - AMBER / WHITE position light
0 Reviews | Add review

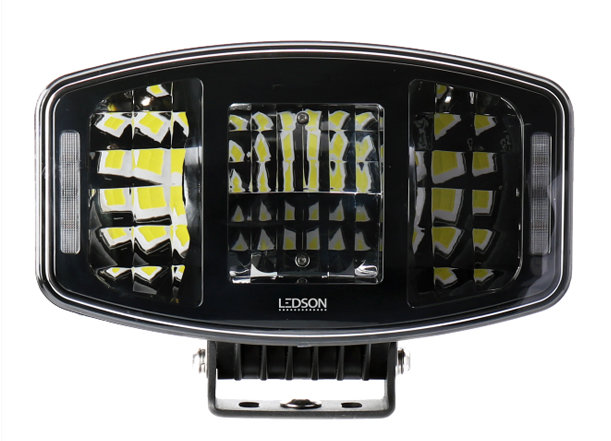

When futuristic design meets raw power...Ledson Orion+

Product number

33490425

Default delivery time

1-4 days

€ 219,99 *
Price per unit



The number of Credit points granted for this product is 8
Quantity:
Order

looking for a auxiliary light that not only shines above expectations, but is also looks extreme stylish?  It's hard not to get caught up with the look and power of the Ledson Orion +

Ledson have ensured that an auxiliary light that owns tomorrow's design also gives well-increased amounts of light! 8500 actual lumens and 1 lux brightness at 450 meters and 0.25 lux brightness at 850 meters (per auxiliary light) give you the visibility ahead on the road that you previously lacked!

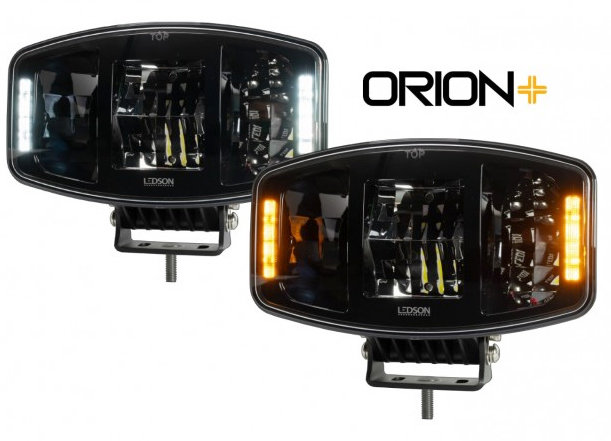

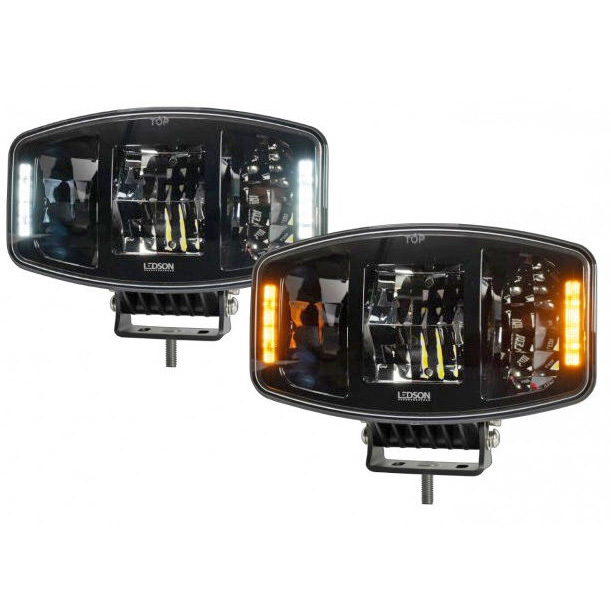

In addition to its beautiful design, the auxiliary light is also equipped with a stylish position light that can be set between xenon white and orange: you choose which one you want, if you get tired of one color with time, you just switch to the other. Orion + has a range of E-markings ECE R112 / R10 / R7, 8500 actual lumens, 6000K light temperature for a modern look, ETM, EMC, side reflective optical system and more .... together with a great performance Orion+ has that coveted mush-have-feeling!

• Driving Beam light image
Driving beams reflectors are all computer generated and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the car's existing headlight and light image.

• Mounting on vehicle
We strongly recommend using our DT relay with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between external light and battery to prevent possible damage to battery and other equipment. Detailed installation instructions are included with the DT relay.

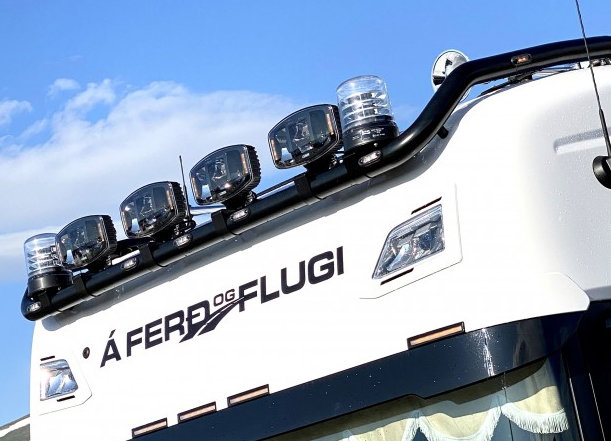

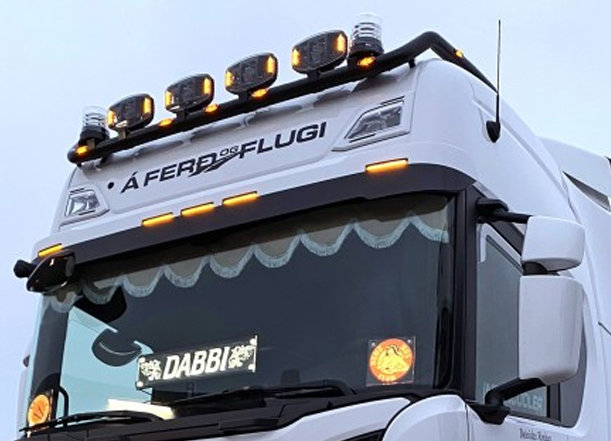

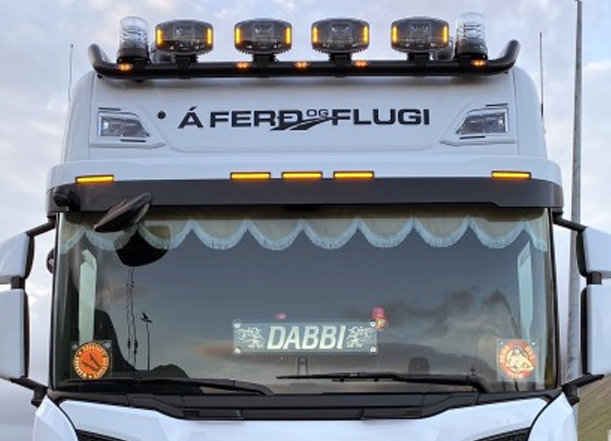

Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother and more stylish using a number plate holder.

TIP: Also see our quick connector relay with ready connectors, no damage to the car's original cabling (no power thief needed). Quick and easy installation!

Specifications:
- With position light, yellow-orange or xenon white (use the color you desire)
- Driving beam light that mimics and reinforces the vehicle's regular light
- E-marked E9 (Ref. 37,5), ECE R112 / R10 / R7 (white position light)
- Range: 850 m (0,25 lux), 425 m (1 lux)
- EMC secured (does not disrupt the radio)
- 10000 lumen (raw), 8500 lumen (effective)
- Cold white light (6000 K)
- ETM (Electronic Thermal Management) - adjusts the diode's strength depending on how hot they are for optimum life
- Side reflecting optical system
- Pressure relief membrane

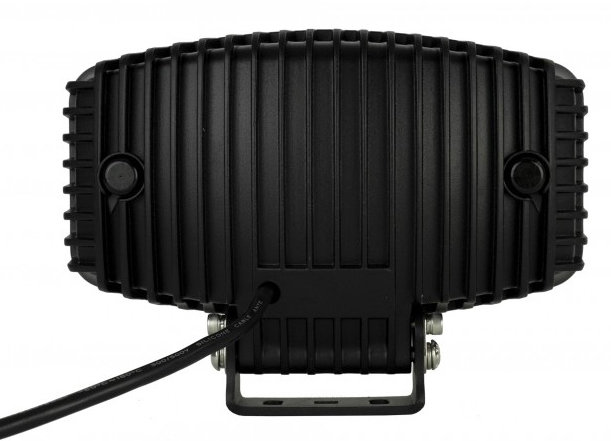

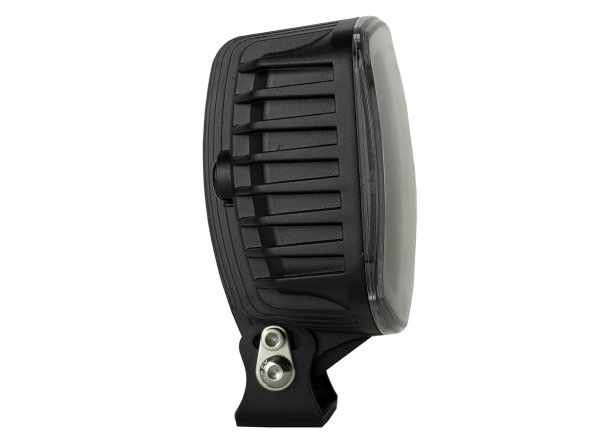

- Aluminum alloy heat-sink
- Adjustable bracket in stainless steel
- Lexan polycarbonate front cover
- 24 month warranty

Technical data:
- 100W (4 x 25W LED)
- IP68/IP69K (water/dust-proof)
- DT connector / DT-adapter 2-4 pin supplied with the product
- Voltage 9-36 V
- Load 6,8 A @ 12 V and 3,4 A @ 24 V

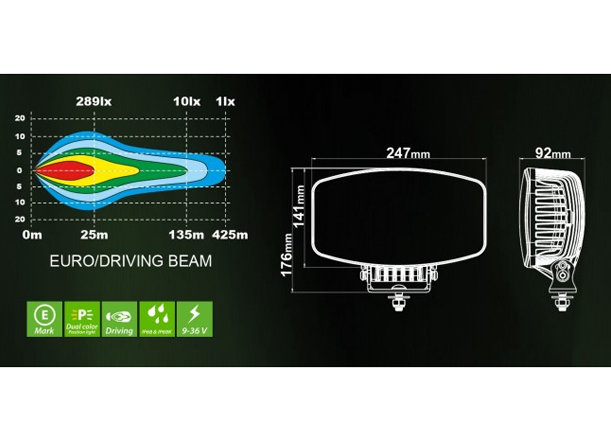

Measurement & weight:
- Width: 247 mm
- Height: 141 mm (176 mm incl mounting)
- Depth: 92 mm
- Weight: 1,82 kg

Supplied:
- Ledson Orion+ LED auxiliary light8"
- Bracket, bults and screws to fasten the light
- DT connector (4-pole) do not forget to buy along DT-relay cable
- Installation instructions

NOTE: The DT connector must not be cut as it involves an increased risk of moisture damage and the guarantee then expires..

Order by:

Add review

Review must be approved by an administrator before being posted.

No reviews found.

Manufacturer
Ledson
Light source
LED
position light
AMBER / WHITE
Number of diode
4
light color
COOL WHITE
Width
247mm
Height
141mm (176mm incl bracket)
Depth
92mm
Voltage
9-36 V
Power consumption
12V = 6,8A / 24V = 3,4A
light output
10 000 lumen (theoretical) - 8500 lumen (actual)
Warranty
24 months
E-mark
E9 - ECE R112
IP
IP68 / IP69K
