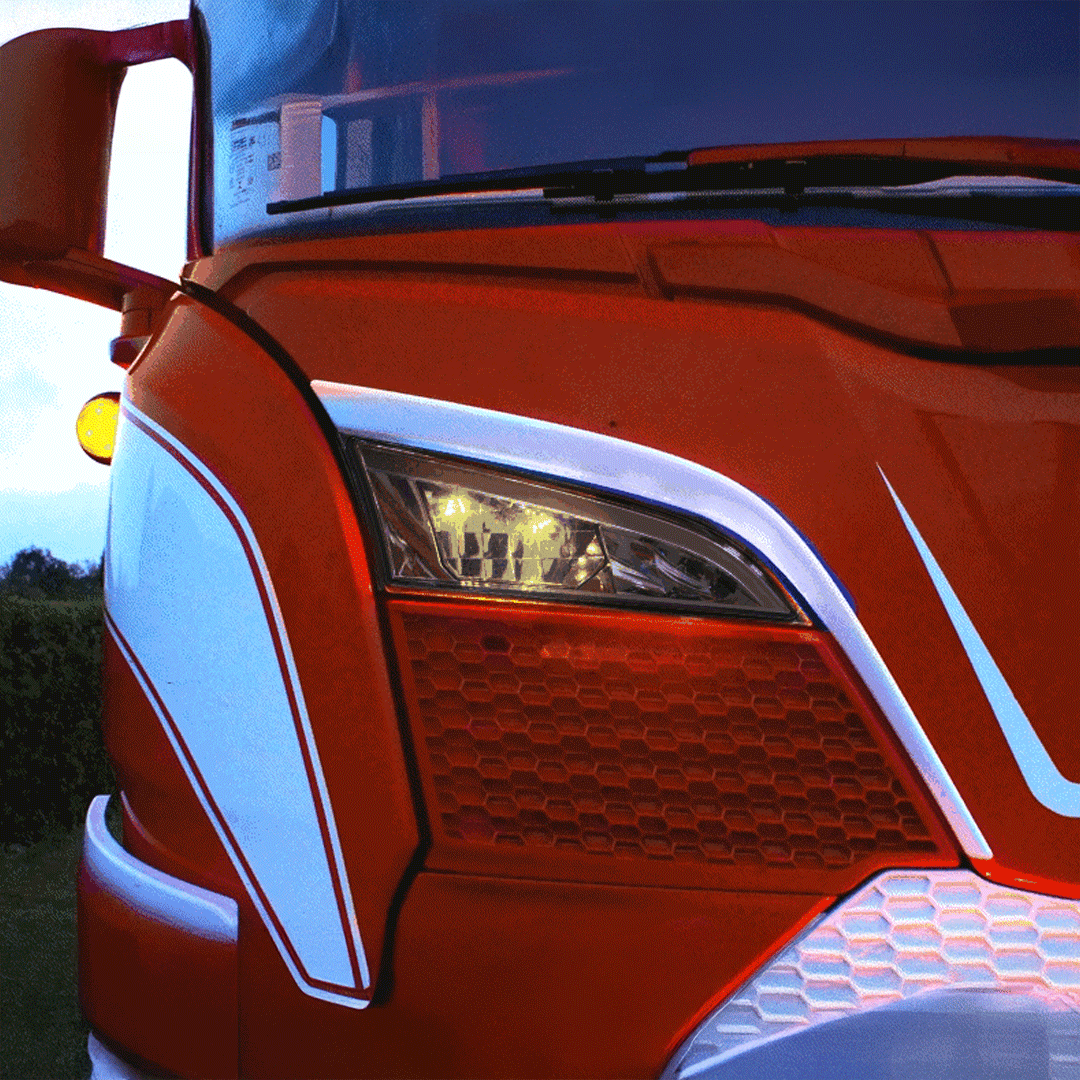

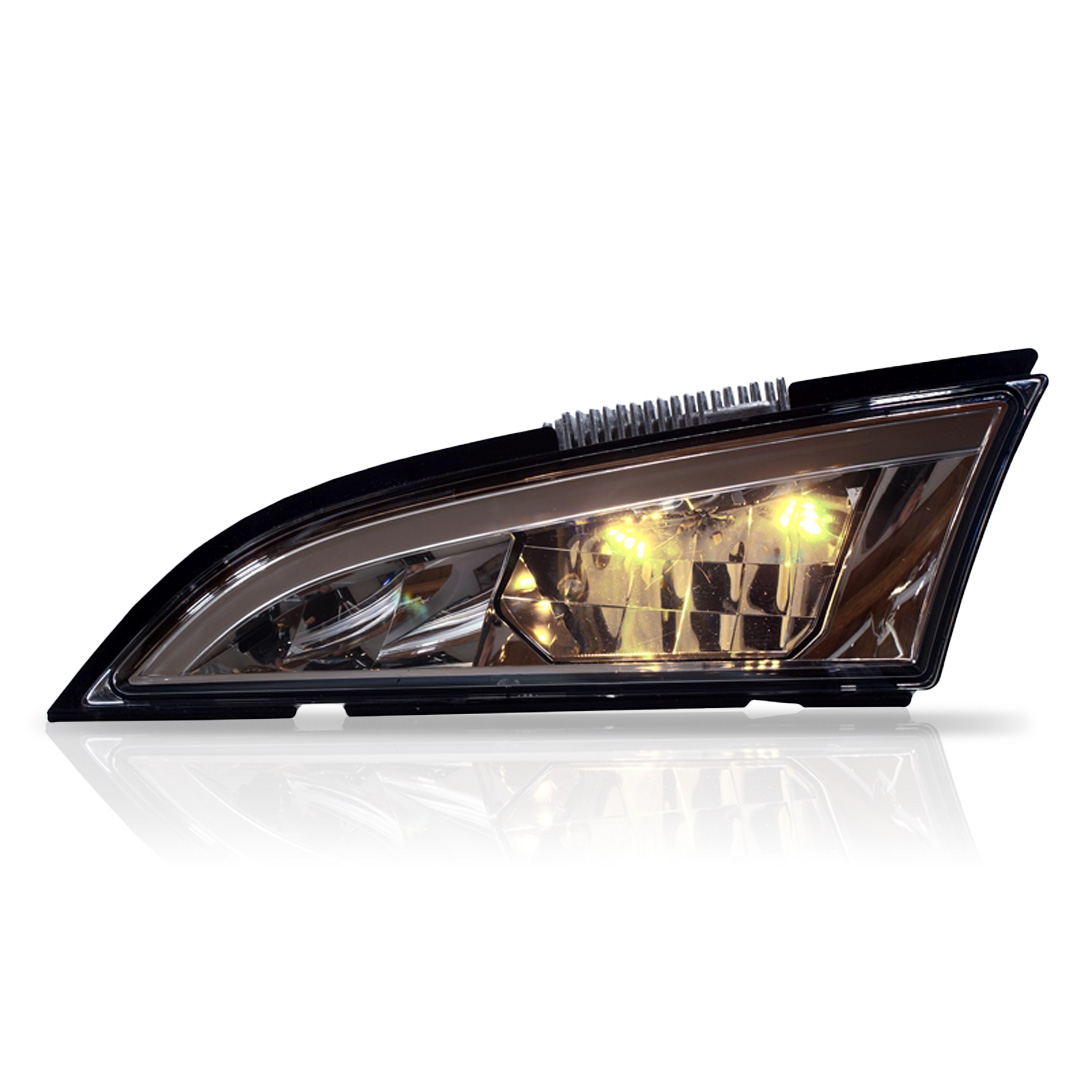

Upgrade your Scania with this LED position light + strobe emitter. Designed for Scania models from 2023, it offers bright two-color lighting. With strobe and flash functions, you stay extra visible without disturbing the high beam. Easy to install and improves lamp accessibility. A smart upgrade for more style and safety!
Specifications:
- Compatible with: Scania 2023+ models
- Number of LEDs: 6

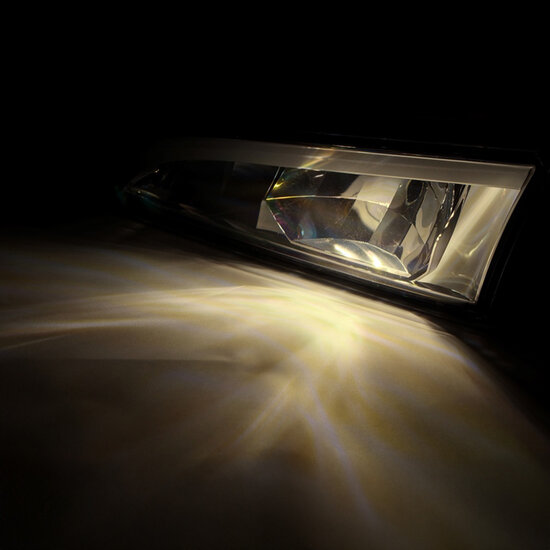

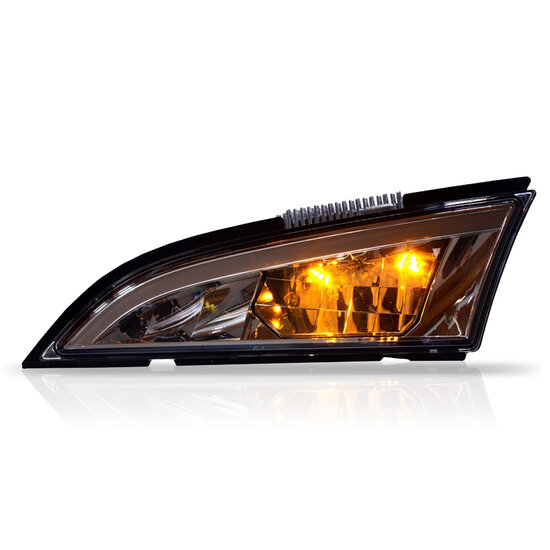

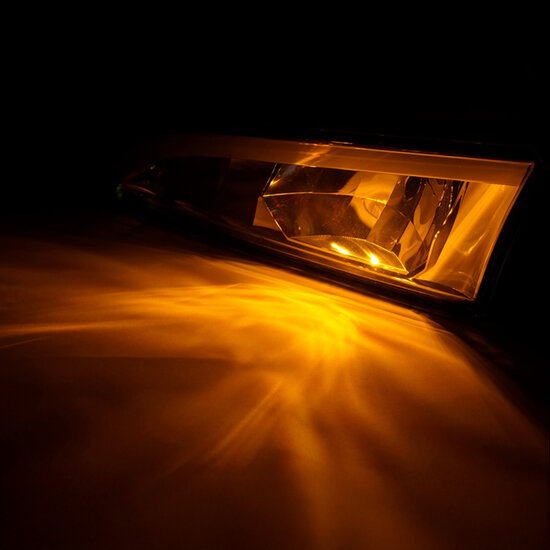

- Color options: Warm white / Orange (dual-color)

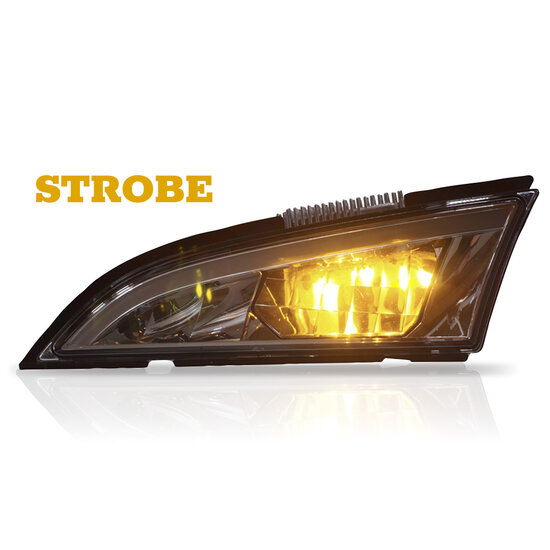

- Functions: Position light (white and yellow), Strobe mode, Greeting function
- Control: 3 dip switches for strobe patterns and split-flash
- Compatibility: Specifically designed for Scania 2023+ models with limited internal space
- Cable length: 3 meters

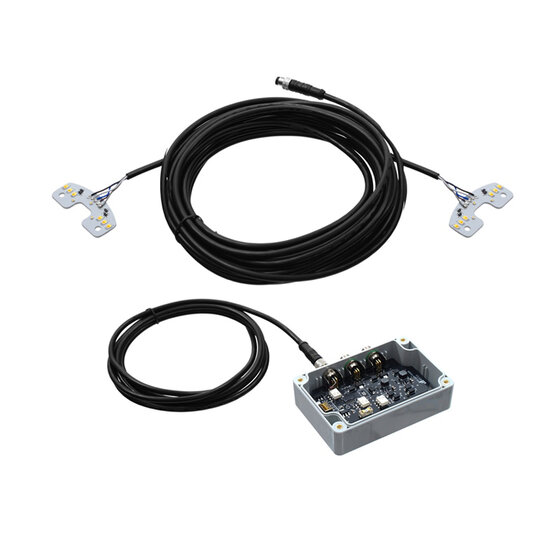

- Includes a controller for color switching and strobe control
Wiring instructions:
- Minus/ground: Brown wire
- Plus for white position light: White wire
- Plus for yellow position light: Green wire
- Mounting:

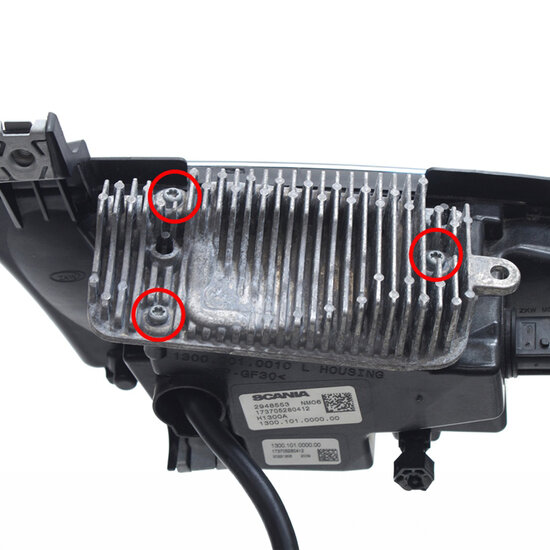

- Unscrew the lamp housing and remove the original emitter.
- Install the new emitter on top of the original using the included spacer and 14mm screws.
- Route the cable out through the blue valve at the back of the lamp.
- You may need to enlarge the valve opening with a drill.

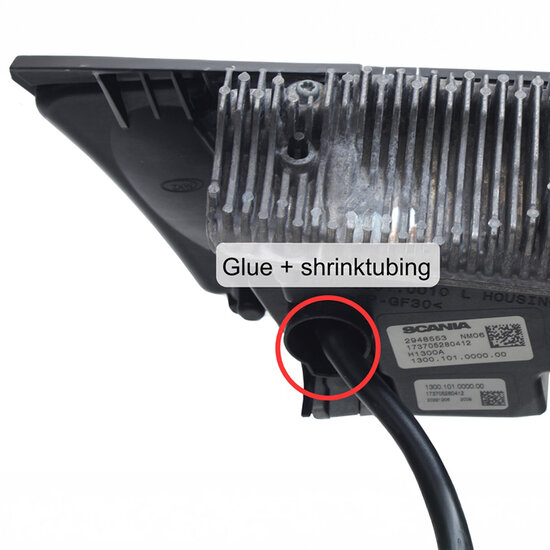

- Secure the cable with glue and apply shrink tubing for a solid seal.
- Controller: Adjust the strobe mode and split-flash using the dip switches on the board.
