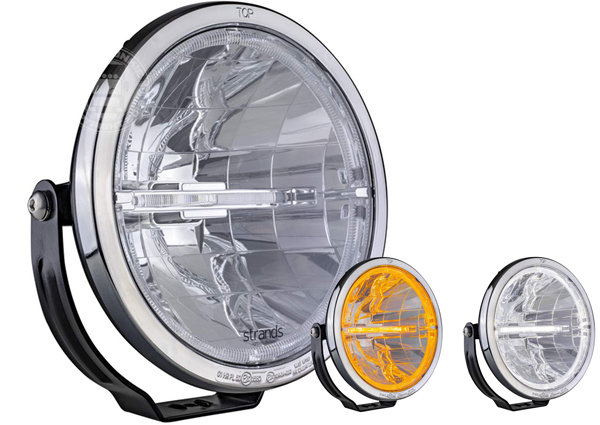

STRANDS AMBASSADOR 9" - LED SPOTLIGHT - AMBER/WHITE

    Type of lamp  : LED
    Type of LED : EDISON
    LED quantity :  8
    Voltage (V DC) : 10-32V DC
    Actual effect (w) :  12V 70.2
    Actual effect (w) :  24V 57.2
    Theoretical lumen :  5535
    Actual lumen : 4040

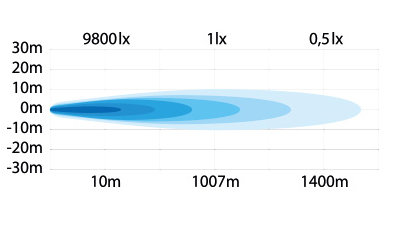

    1 LUX @ m : 1007
    Kelvin : 6250
    IP-class : 68
    Colour housing : Black
    Colour lens : Clear
    Colour LED´s : White/Amber
    Beam pattern : Spot
    Position light:  amber and white
    Cable length (mm) : 3000
    Material bracket : Steel
    Material housing :  Aluminium
    Material lens : Polycarbonate

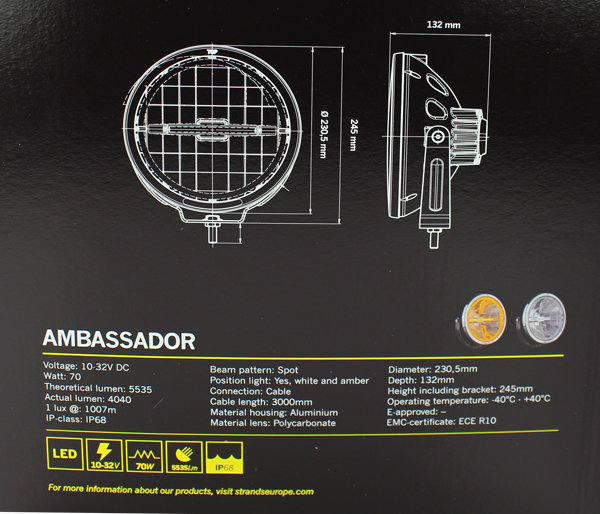

    Depth (mm) : 132
    Height including bracket (mm) :  245
    Diameter (mm) : 230.5
    Operating temperature :  -40 – +40°C
    ADR-approved :  No
    E-approved : No

   Connections:
   Red Cable - Positive (+)
   White cable - Negative (-)
   Yellow cable - Amber position light
   Black cable - White position light
