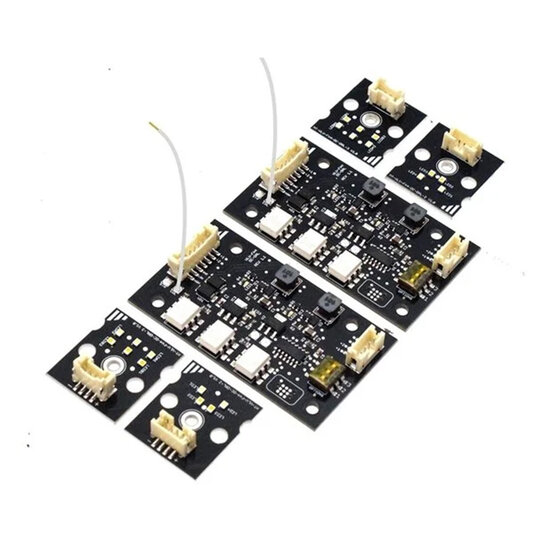

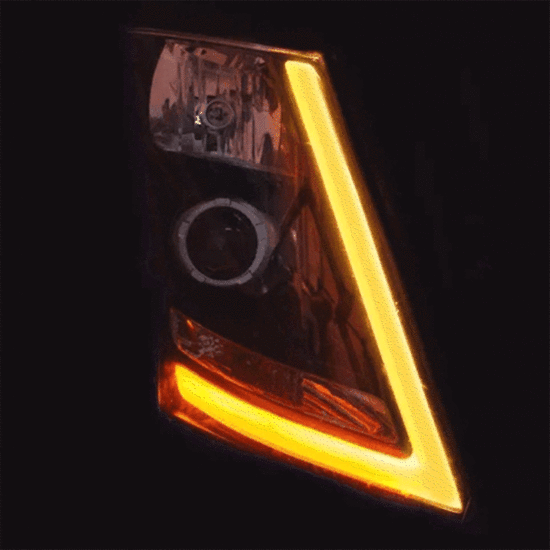

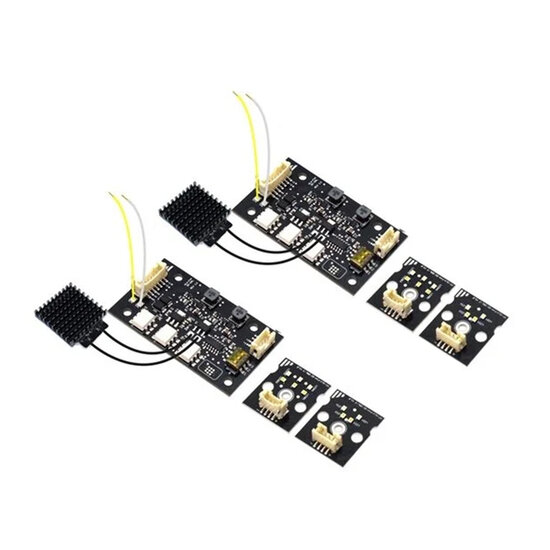

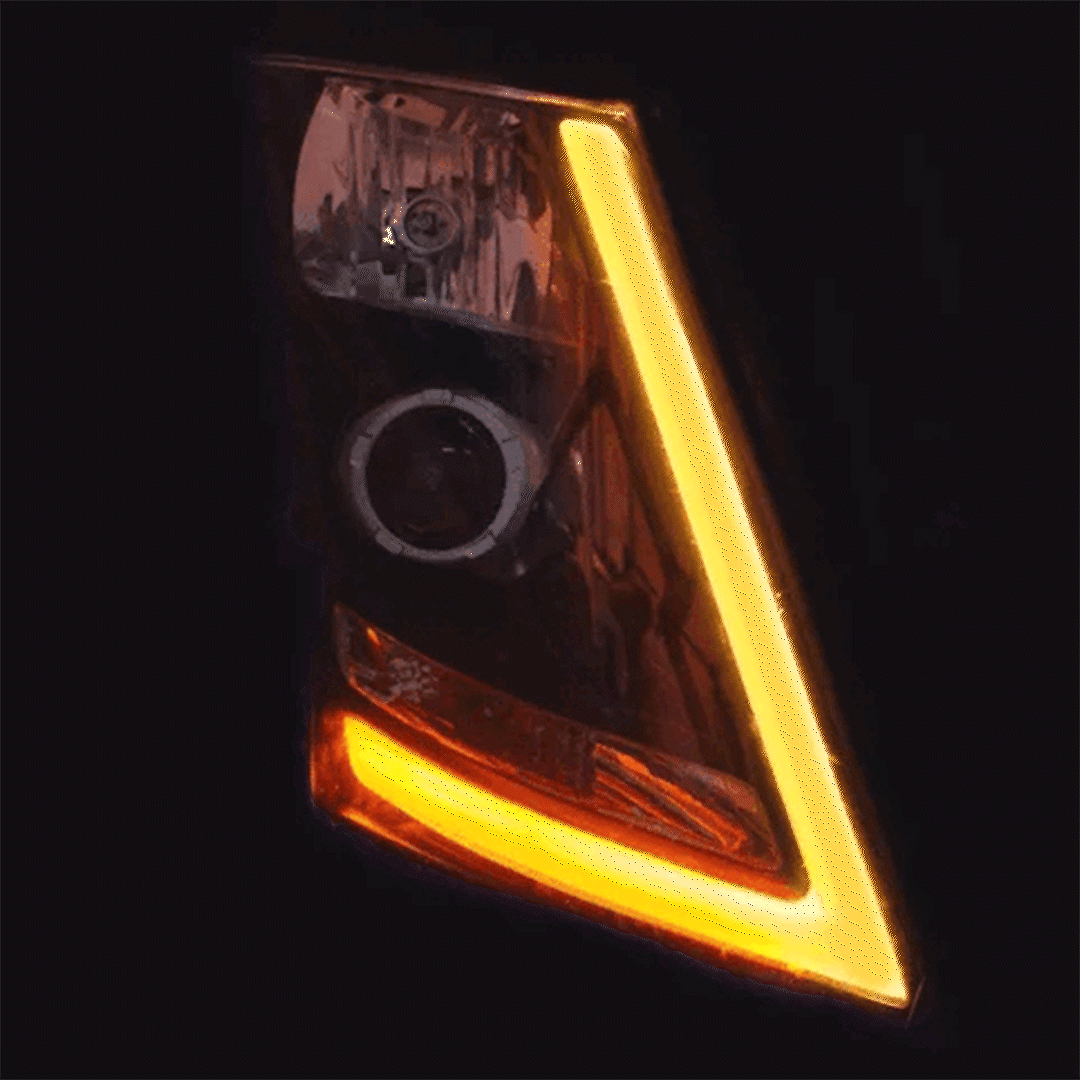

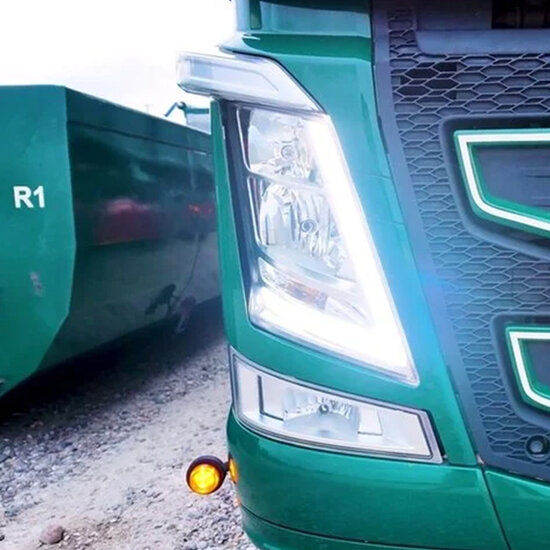

This LED set is specifically designed for the Volvo FH4 and offers dual-color daytime running lights in amber and warm white, with the option to switch to strobe mode. The set replaces the original DRLs and provides a modern look with a powerful light output of 2000 lumens, equivalent to the original lighting. The strobe function includes additional circuit boards with cooling elements that act as dummy resistors when the strobe is active. Installation is easy thanks to the included mounting kit.
Specifications:
- Compatibility: Volvo FH4 from 2012
- Colors: Orange and cold white (6000k)
- Light Output: 2000 lumens
- Strobe Function: Dual-color strobe with three programmable flash patterns
- Included: Complete set of LED emitters + mounting kit
- Excludes: Switch
Installation Instructions:

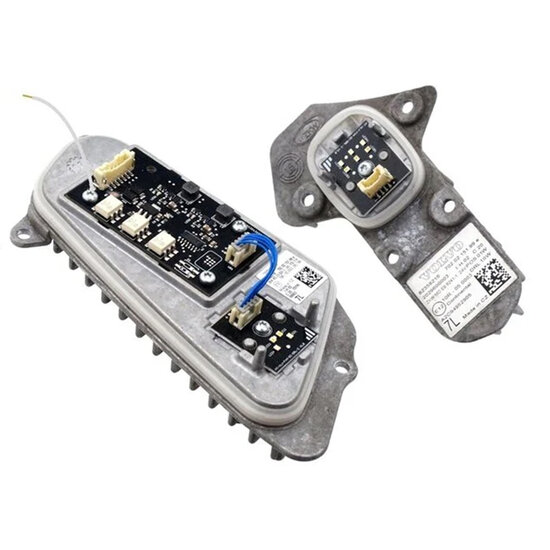

- Remove the connectors from the original LEDs.
- Unscrew the original LEDs and remove them from the cooling plates.
- Clean the surfaces thoroughly to remove old thermal paste or grease.
- Apply a thin, even layer of the included thermal paste to the cooling plate.
- Place the new LED emitter into the paste and secure it with screws. Tighten carefully.
- Reconnect the connectors.
- The three DIP switches on the circuit board are used to select between four different flash patterns. DIP1 and DIP2 select the program, and DIP3 determines if it should be a dual-color strobe.
Check the number of LEDs in your original DRLs before purchase (4/6 for 2012-2015 models, 2/3 for 2015+ models).
